CRG 10MM KINGPIN & SNIPER PLATE ASSEMBLY

Genuine CRG 10mm kingpin & sniper plate assembly, listed by CRG part number.

Pick the part from the option list. Each option is one part with its own part number.

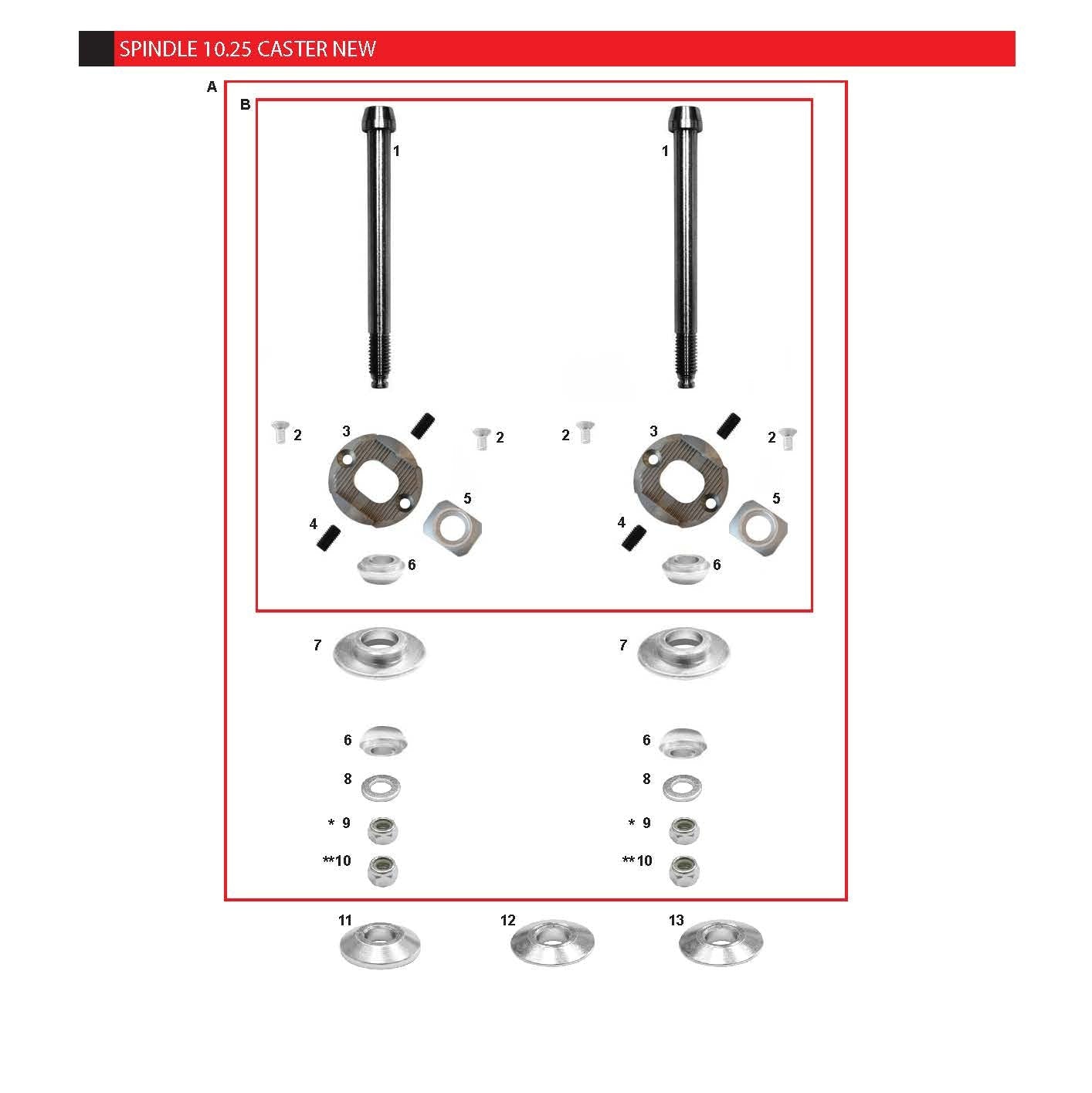

• A. Sniper caster system complete set KZ/KF (FK0.02352)
• A. Sniper caster system KF complete set + spacer (FK0.01608)
• A. Sniper caster system Kz complete set + spacer (FK0.06447)
• B. Sniper caster system set new top (FK0.02353)
• 2. M 4x10 countersunk head screw  (AFN.02389)
• 3. Caster support A (AFS.02352)
• 4. Grub screw M 5x10 (set) (AFN.02390)
• 5. Caster plate high B (AFS.02353)
• 6. Bushing half caster  (FZ0.02450)
• 7. Fixed caster STD (FZ0.01602)
• 8. Washer 10,5-20x2 (AFN.01637)
• 9. Nut M10 low self-locking (AFN.00657)
• 10. Nut M10 high self-locking (AFN.02393)
• 11. Stub axle space 10-28x3 plain (FZ0.01769 **)
• 12. Stub axle space 10-28x6 conical (FZ0.01719 **)
• 13. Stub axle space 10-28x6 plain (FZ0.01607 *)
