CRG 8MM KINGPIN & SNIPER PLATE ASSEMEBLY

Genuine CRG 8mm kingpin & sniper plate assemebly, listed by CRG part number.

Pick the part from the option list. Each option is one part with its own part number.

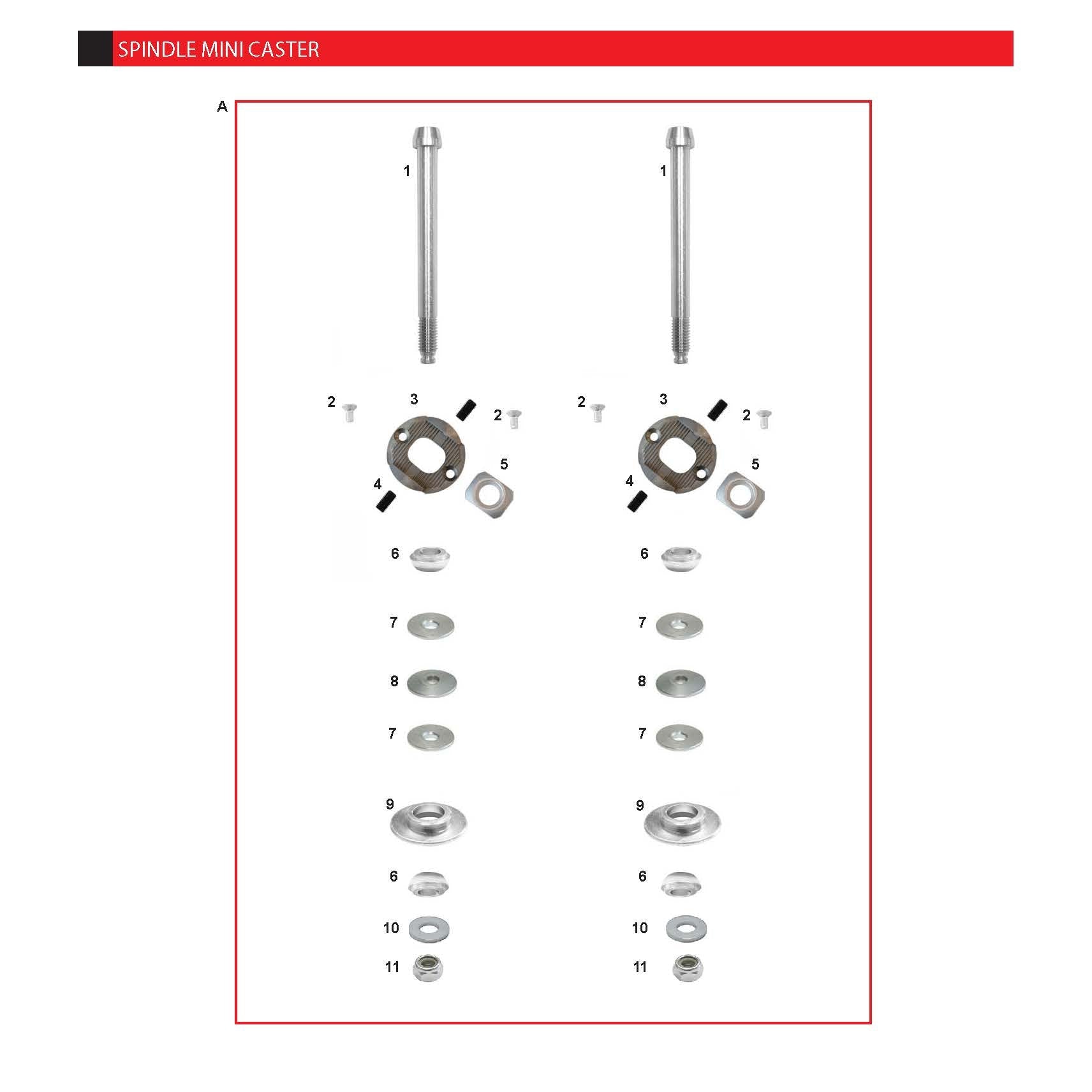

• A. Complete Mini Sniper caster (FK0.01017)
• 1. Stub axle bolt mini 8x110 black (FBN.02391)
• 2. M 4x8 countersunk head screw (AFN.02408)
• 3. Caster support A (AFS.02352)
• 4. Grub screw M 5x10 double caster (set) (AFN.02390)
• 5. Caster plate high B (AFS.02353)
• 6. Bushing half caster  (FZ0.02666)
• 7. Stub axle spacer 8-28x3 plain (FZ0.03152)
• 8. Stub axle spacer 8-28x6 conical (FZ0.03147)
• 9. Fixed carter mini kart (SZ0.03559)
• 10. Washer 8,5-18x2 (AFN.00108)
• 11. Nut M8 high self-locking (AFN.00128)

Not sure which one you need? Send us your chassis or engine and year and we will match the part.
