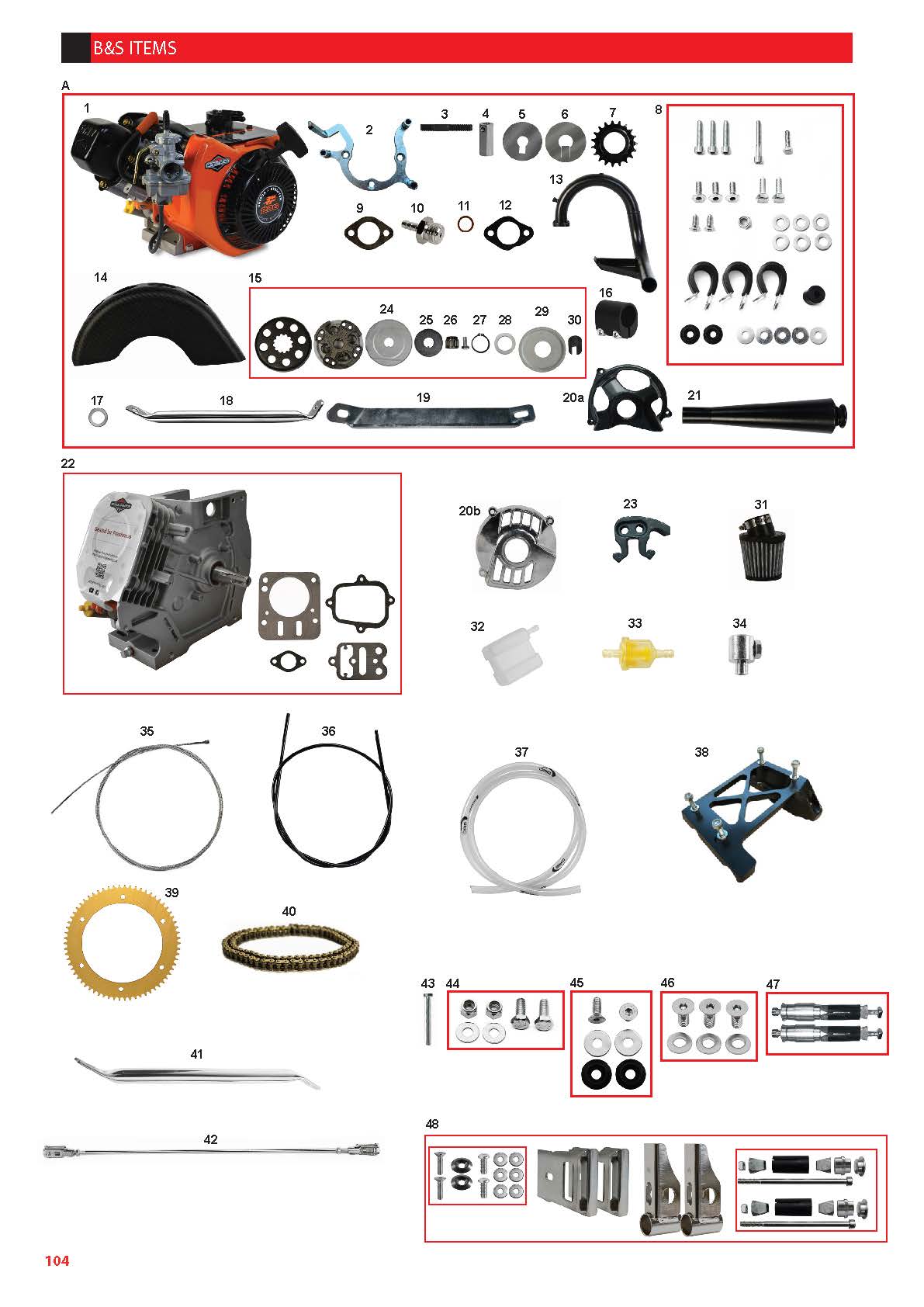

CRG - B&S ITEMS

Genuine CRG b&s items, listed by CRG part number.

Pick the part from the option list. Each option is one part with its own part number.

• A. B&S engine (without eng. mount) (FM0.05571)
• 1. B&S engine (124332820101BC1001)
• 2. B&S gasket clutch protection adapter (SZ0.03931)
• 3. Prisoner M6x42 long root (AFN.04754)
• 4. Exhaust nut B&S M6x22 (SZ0.04536)
• 5. B&S pinion safety washer (SZ0.04322)
• 6. B&S pinion safety under washer (SZ0.04323)
• 7. 19 tooth chain sprocket Hilliard Inferno (AFS.04333)
• 8. B&S engine mounting screw kit (PMV.MOTORE.BRIGGS)
• 9. B&S exhaust manifold gasket (AFS.04267)
• 10. Fuel pump connettor B&S (SL1.03928)
• 11. Washer 20-26x1,5 (AFN.04502)
• 12. B&S exhaust manifold thickness (SBN.04749)
• 13. B&S black exhaust manifold (FVN.04185)
• 14. B&S exhaust protection (AFS.04187)
• 15. Hilliard inferno flame clutch (AFS.04335)
• 16. Stabilisator clamp 32 black (FMN.00773)
• 17. Clutch fixing washer for B&S (SZ0.04266)
• 18. Muffler reinforcement B&S 26 cm. (SC0.05032)
• 19. Muffler reinforcement B&S 25 cm. (SZ0.06537)
• 20A. Clutch carter B&S (A10.1061600)
• 20B. Clutch carter (previous mod.) (MXT.10030)
• 21. B&S black exhaust terminal (FVN.04186)
• 22. B&S engine monoblock (555715A)
• 23. Hilliard Inferno clutch friction clamp (AFS.05422)
• 24. Cover for fat clutch Hilliard Inferno (AFS.06299)
• 25. Hilliard Inferno clutch washer Ø56 (AFS.05421)
• 26. Roller cage clutch Hilliard Inferno (AFS.06297)
• 27. Hilliard Inferno pinion locking circlip (AFS.05420)
• 28. Brake pad spacer clutch Hilliard Inferno (AFS.06296)
• 29. Inner cover clutch Hilliard Inferno (AFS.06298)
• 30. Hilliard Inferno black spring for clutch (AFS.04332)
• 31. Air filter baby B&S (AFS.03903)
• 32. Recovery tank (AFS.00753)
• 33. Small fuel filter (AFS.03868)
• 34. Cable clamp (AFS.00514)
• 35. Gas cable (AFS.00515)
• 36. Outer cable Ø5 for gas cable (AMS.01370)
• 37. Fuel pipe per meter (AMS.00139)
• 38. Engine mount CRG mini 30 alu.+stud (FMN.06161)
• 39. Ring gear KF Z66 (AFS.00171)
• 39. Ring gear KF Z70 (AFS.00171)
• 40. Chain 110M KF (AFS.00614110)
• 40. Chain 112M KF (AFS.00614112)
• 41. Straight seat support 26 (FC0.01390)
• 42. Brake rod complete cm.39 FS4 (FK0.03936)
• 42. Brake rod complete cm.33 Mini (FK0.00704)
• 43. M10x100 hexagonal head screw (AFN.02941)
• 44. Muffler reinforcement mounting screw kit (FK0.05747)
• 45. Exhaust protection mounting screw kit (FK0.05748)
• 46. Clutch adapter mounting screw kit (FK0.05749)
• 47. Expander rear screw kit Ø28 plastic (FK0.05519)
• 48. Rear fairing conn. kit CIK/14 D28 KG exp. (FK0.05229.28FS4)

Not sure which one you need? Send us your chassis or engine and year and we will match the part.
