CRG Bodywork 507/509

Genuine CRG bodywork 507/509, listed by CRG part number.

Pick the part from the option list. Each option is one part with its own part number.

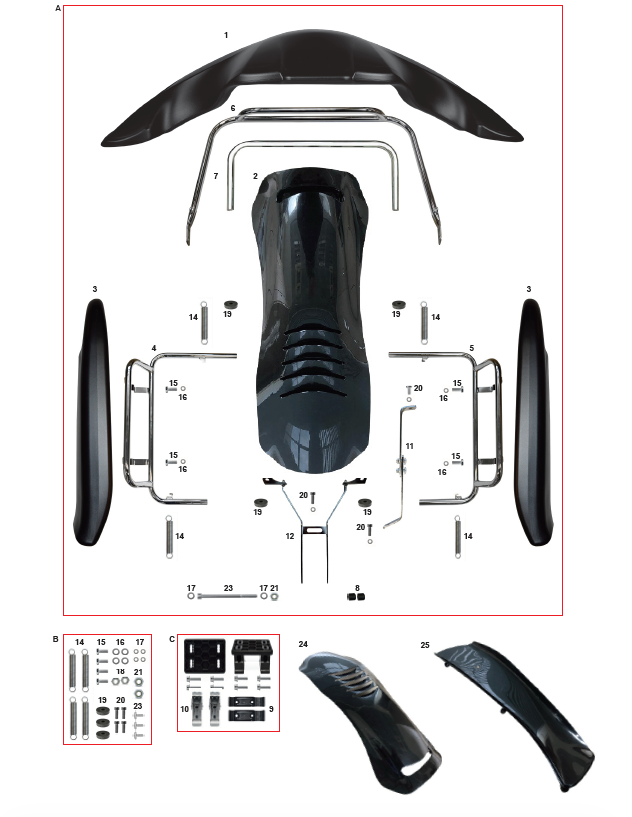

• A. 507/509 fairing kit complete black (CRG.06750)
• B. Screw mounting kit for 507/509 (PMV.06720)
• C. KG spoiler 507/509-MK20/27 fix kit (FK0.05233)
• 1. 509 CIK/FIA front spoiler black (AFS.06736)
• 2. 509 front fairing black (AFS.06737)
• 3. 507 side fairing right left black (AFS.05865)
• 4. Side bumper 507 left (SC0.5844S)
• 5. Side bumper 507 right (SC0.5844D)
• 6. Front bumper top bar 507/508 (SC0.05895)
• 7. Front bumper bar bottom 507/509 (SC0.01355)
• 8. Spacer 6,5-18x14 front fairing black (FAN.00355)
• 9. Spoiler plastic support (single) (AFS.00504)
• 10. Fast clamps for spoiler (single) (AFS.00503)
• 11. Front fairing support below adj. complete (FK0.04457)
• 12. Front fairing support top 509 (SC0.06752)
• 14. Side bumper spring (FZ0.01439)
• 15. M 8x16 hexagonal head screw (AFN.04325)
• 16. Washer 8,5-16x1,5 (AFN.00350)
• 17. Washer 6,5-12x1,5 (AFN.00105)
• 18. Nut M 6 low self-locking (AFN.00106)
• 19. Floor tray rubber (AFS.00258)
• 20. M 6x20 socket head screw (AFN.00183)
• 21. Nut M6 high self-locking (AFN.00264)
• 22. M 6x90 socket head screw (AFN.00404)
• 23. Floor tray large head screw M 6x16 (AFS.00261)
• 24. Front fairing 509 upper part black (AFS.06737.SUP)
• 25. Front fairing 509 lower part black (AFS.06737.INF)

Not sure which one you need? Send us your chassis or engine and year and we will match the part.
