CRG CHAIN PROTECTION KIT

Genuine CRG chain protection kit, listed by CRG part number.

Pick the part from the option list. Each option is one part with its own part number.

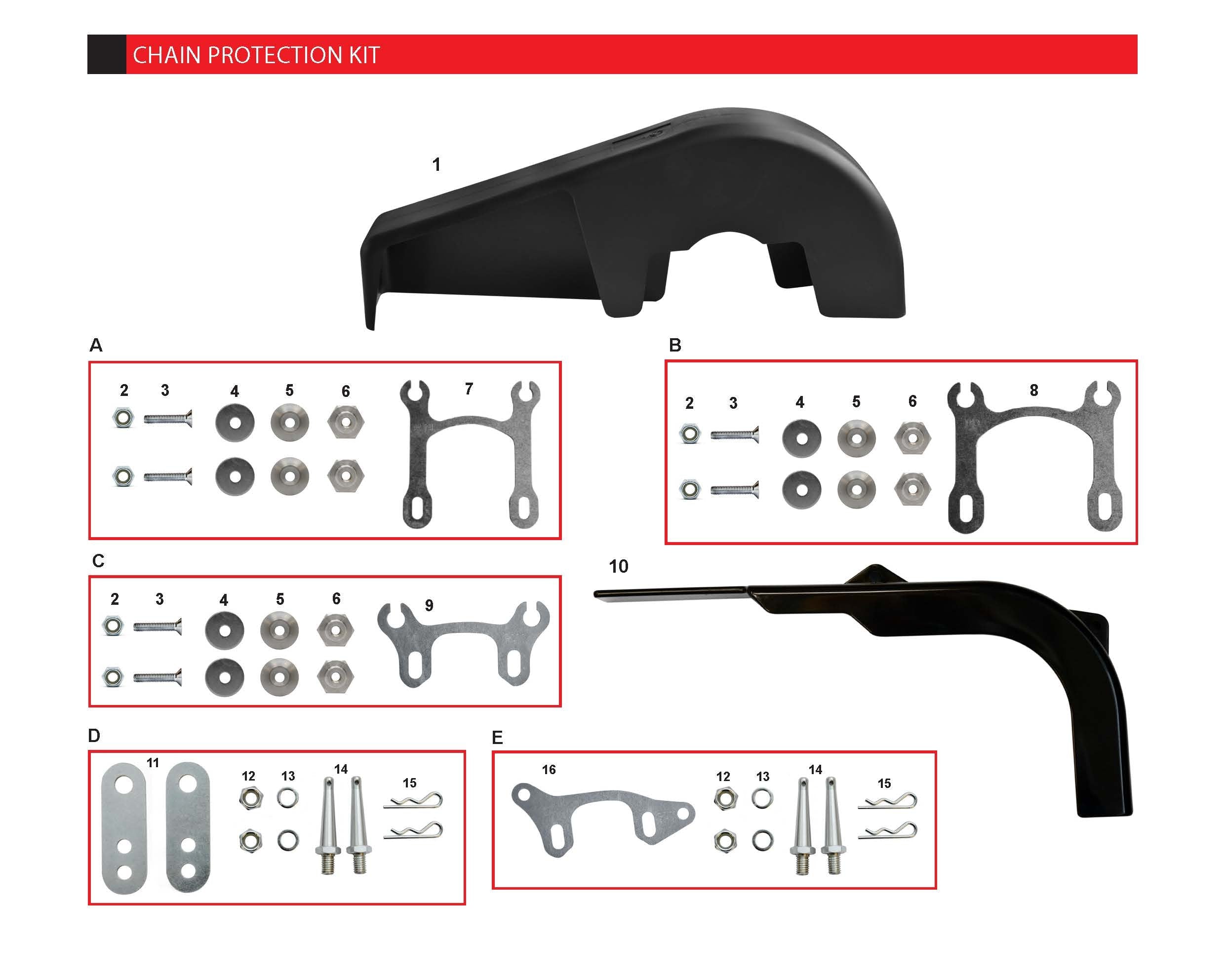

• 1. Integral chain guard DD (AFS.04390)
• A. Chain guard support kit integral mini (FK0.04338)
• B. Chain guard support kit light hybrid (FK0.04337)
• C. Chain guard support kit DD GLM (FK0.05001)
• 2. Nut M6 high self-locking (AFN.00264)
• 3. M 6x30 contersunk head screw (AFN.00499)
• 4. Washer 6,5-24x2 (AFN.01447)
• 5. Washer M6 contersunk large (SL1.04336)
• 6. Chain guard support nut integral (SL1.04326)
• 7. Chain guard support mini integral (FZ0.04338)
• 8. Chain guard support light hybrid integral (FZ0.04337)
• 9. Chain guard support DD GLM (FZ0.05001)
• 10. KZ chain guard rapid release (AFS.04577)
• D. Chain guard clamps kit KZ fast release (FK0.04933)
• E. Chain guard clamps kit KZ GLM fast release (FK0.05003)
• 11. Chain guard connection plate KZ RR (SZ0.04811)
• 12. Nut M8 low self-locking (AFN.00160)
• 13. Washer 8,5-16x1,5 (AFN.00350)
• 14. Chain guard pivot KZ RR neutral (SL1.04823)
• 15. Front fairing elastic pin (SZ0.00102)
• 16. Chain guard support KZ GLM fast release (FZ0.05003)
• 0. Chain guard connection plate KZ 75mm  (SZ0.05065)
• 0. Chain guard connection plate KZ 90mm (SZ0.05066)

Not sure which one you need? Send us your chassis or engine and year and we will match the part.
