CRG FLANGES

Genuine CRG flanges, listed by CRG part number.

Pick the part from the option list. Each option is one part with its own part number.

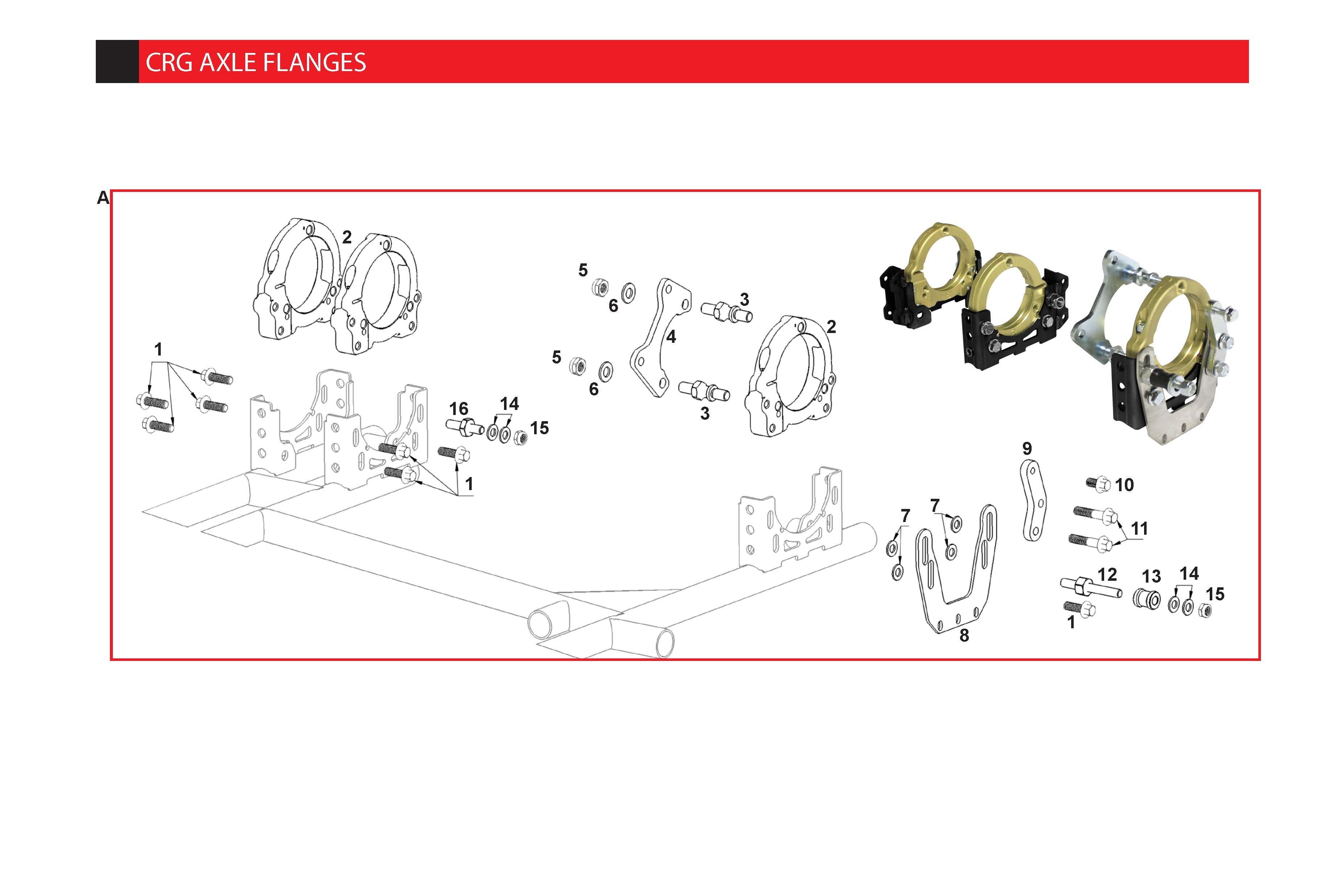

• Axle flange adjustment system 2 (FK0.02951KZ)
• 1. M 8x25 flanged screw (AFN.00968)
• 2. Axle flange 50 adjustable system 2 gold (FMG.03321)
• 3. Axle flange 50 adjustable system 6 gold (FMG.03323)
• 5. Brake caliper support V05 (FC0.02869)
• 6. Nut M10 low self-locking (AFN.00657)
• 7. Washer 10,5-20x2 (AFN.01637)
• 8. Washer 8,5-17x1,5 (AFN.00129)
• 9. Disc protection support  (AML.02872)
• 10. Plate for seat support rinforcement (SZ0.03143)
• 11. M 8x20 flanged head screw (AFN.03149)
• 12. M 8x38 flanged head screw (AFN.00284)
• 13. Long stud model X2 (SZ0.03145)
• 14. Caliper spacer hybrid 8,5x21x18 (FAN.01462)
• 15. Washer 8,5-18x2 (AFN.00108)
• 16. Nut M8 high self-locking (AFN.00128)
• 17. Short stud model X2 (SZ0.03144)

Not sure which one you need? Send us your chassis or engine and year and we will match the part.
