CRG KZ READY TO RACE KITS - FOR REFERENCE PURPOSES ONLY

Genuine CRG kz ready to race kits - for reference purposes only, listed by CRG part number.

Pick the part from the option list. Each option is one part with its own part number.

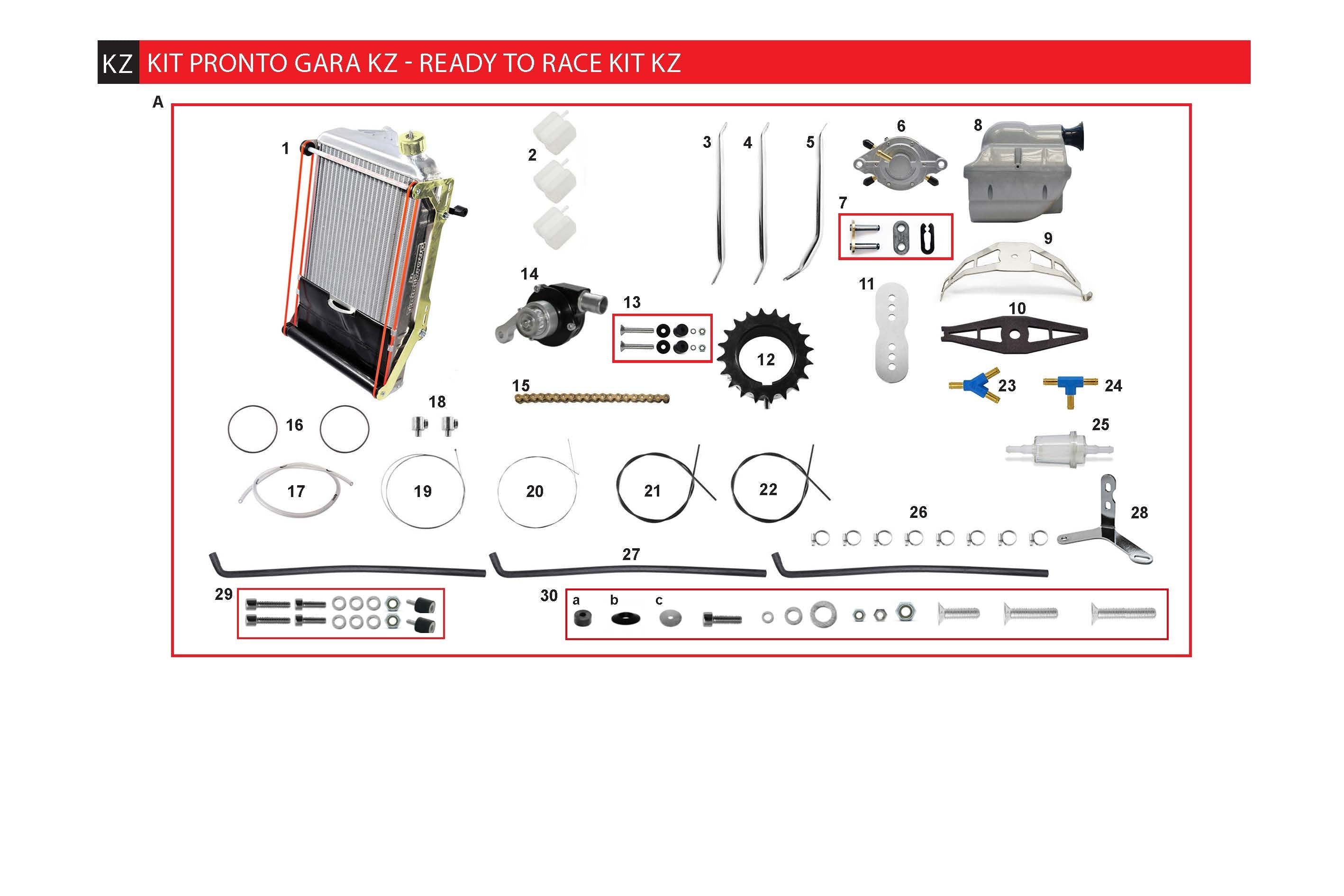

• A. KZ ready to race (CRG.50006)
• 1. Racing radiator assy complete with curtain gold (FMG.02463)
• 2. Recovery tank (AFS.00753)
• 3. Straight seat support 26 (FC0.01390)
• 4. Straight seat support 28 (FC0.01391)
• 5. Seat reinforcement 28 under KZ muffler (FC0.01028)
• 6. Double fuel pump Mikuni DF52-176 (AFS.05044)
• 7. Joining link for chain KZ (AMS.00779)
• 8. Air filter nitro 30 KZ 8/SA/24 silver (AFS.03875)
• 9. Air filter support (AML.01933)
• 10. Sticker sponge for filter (AFS.01935)
• 11. Plate filter support KZ/KF (SC0.01934)
• 12. Sprocket KZ Ø50 ergal Z24 (AFS.00797Z24)
• 13. Screw mounting kit air filter (PMV.FILTRO.KZ)
• 14. Water pump R-HTD (AFS.05987)
• 15. KZ chain per meter (AMS.00671)
• 16. Water pump driving belt 2000 (AFN.00248)
• 17. Fuel pipe per foot (AMS.00139)
• 18. Cable clamp (AFS.00514)
• 19. Gas cable (AFS.00515)
• 20. Clutch cable (AFS.01364)
• 21. Outer cable Ø6 for clutch (AMS.00516)
• 22. Outer cable Ø5 for gas cable (AMS.01370)
• 23. Y fitting festo 6mm (AFS.01981)
• 24. T fitting festo (AFS.01982)
• 25. Fuel filter                (AFS.01016)
• 26. Radiator water clip 16-25  (AFN.00776)
• 27. Curved water pipe (AFS.00761)
• 28. Fuel pump support Y (SC0.06052)
• 29. Fuel pump support kit (FK0.06571)
• 30. KZ seat mounting kit (FKN.00259)
• 30A. Seat lining 10-27x14 nylon  (AFS.04662)
• 30B. Aluminum seat washer black 8 (FAN.00260)
• 30C. Washer 8,5-46x2 CIK seat (AFN.04764)

Not sure which one you need? Send us your chassis or engine and year and we will match the part.
