CRG - KZ V13 BRAKE SYSTEM GOLD

Genuine CRG kz v13 brake system gold, listed by CRG part number.

Pick the part from the option list. Each option is one part with its own part number.

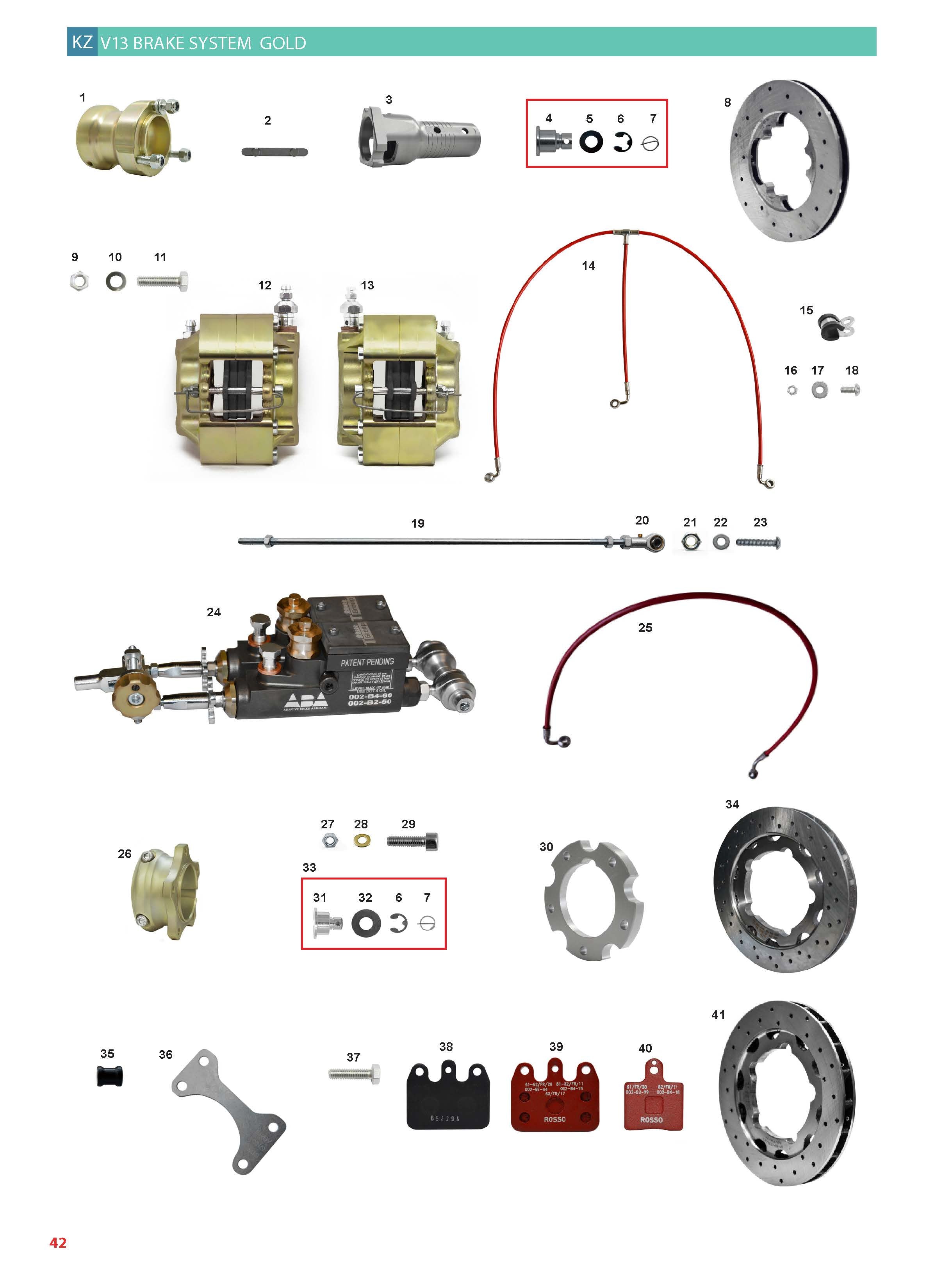

• Brake system KZ V13 180 gold (MONT.KZ-oro.V13-180)
• 1. Front hub KZ 40x80 R2.0 alu. gold compl.  (FMG.05666)
• 2. Rear axle keyway 2 pins (AFS.00246)
• 3. Alu. front brake disc hub V11 KZ 25 compl. (FMN.01893)
• 4. Front brake disc bush (SBN.00372)
• 5. Brake disc elastic washer (AFN.00230)
• 6. Circlip Ø8 brake disc          (AFN.00231)
• 7. Elastic pin Ø10 brake disc (AFS.00232)
• 8. Brake disc front V11 154 std (FL1.04225)
• 9. Nut M8 metalblock (AFN.00286)
• 10. Undulated washer 8 (AFN.00047)
• 11. M 8x30 socket head screw (AFN.00827)
• 12. Front caliper gold complete left (FMG.4961S)
• 13. Front caliper gold complete right (FMG.4961D)
• 14. Front brake hose tris ABA red eye (AFS.05832)
• 15. Brake tube clip Ø6 (AFN.03912)
• 16. Nut M 6 low self-locking (AFN.00106)
• 17. Washer 5,5-15x1,5 (AFN.00361)
• 18. M 5x12 convex head screw (AFN.00359)
• 19. Brake rod assy cm.39 (FK0.03936)
• 20. Uniball M6 female hole (AFS.05848)
• 21. Nut M 5 low self-locking   (AFN.00360)
• 22. Washer 5,5-15x1,5 (AFN.00361)
• 23. M 6x30 convex head screw (AFN.04636)
• 24. ABA master cylinder double KZ complete (FM0.05961)
• 25. Brake tube ABA rear eyelet mm735 (AFS.05831)
• 26. Rear disc hub aluminum 50 R2.1 gold compl. (FMG.06224)
• 27. Nut M 6 metalblock (AFN.00234)
• 28. Washer 6,5-10x1 inox (AFN.06156)
• 29. M 6x20 socket head screw (AFN.00183)
• 30. Rear brake disc flange V11 (SAN.01592)
• 31. Rear brake disc V11 bushing (SBN.01660)
• 32. Rear brake disc elastic washer V11 (AFN.01677)
• 33. Rear brake disc V11 bush complete (FK0.01660)
• 34. Rear brake disc V13 Ø180 R2.0 (FL1.05827)
• 35. Caliper spacer hybrid 8,5x21x18 (FAN.01462)
• 36. Rear brake caliper plate V13 Ø180 R2.0 (SZ0.05876)
• 37. M 8x25 hexagonal head screw (AFN.00107)
• 38. Rear brake pad V11 black (AFS.04916)
• 39. Rear brake pad V11 red (AFS.01745)
• 40. Front brake pad V11 red (AFS.02997)
• 41. Rear brake disc V11 192 STD (FL1.0422403)
• 41. Rear brake disc V13 ø192 R2.0 (SZ0.06644)

Not sure which one you need? Send us your chassis or engine and year and we will match the part.
