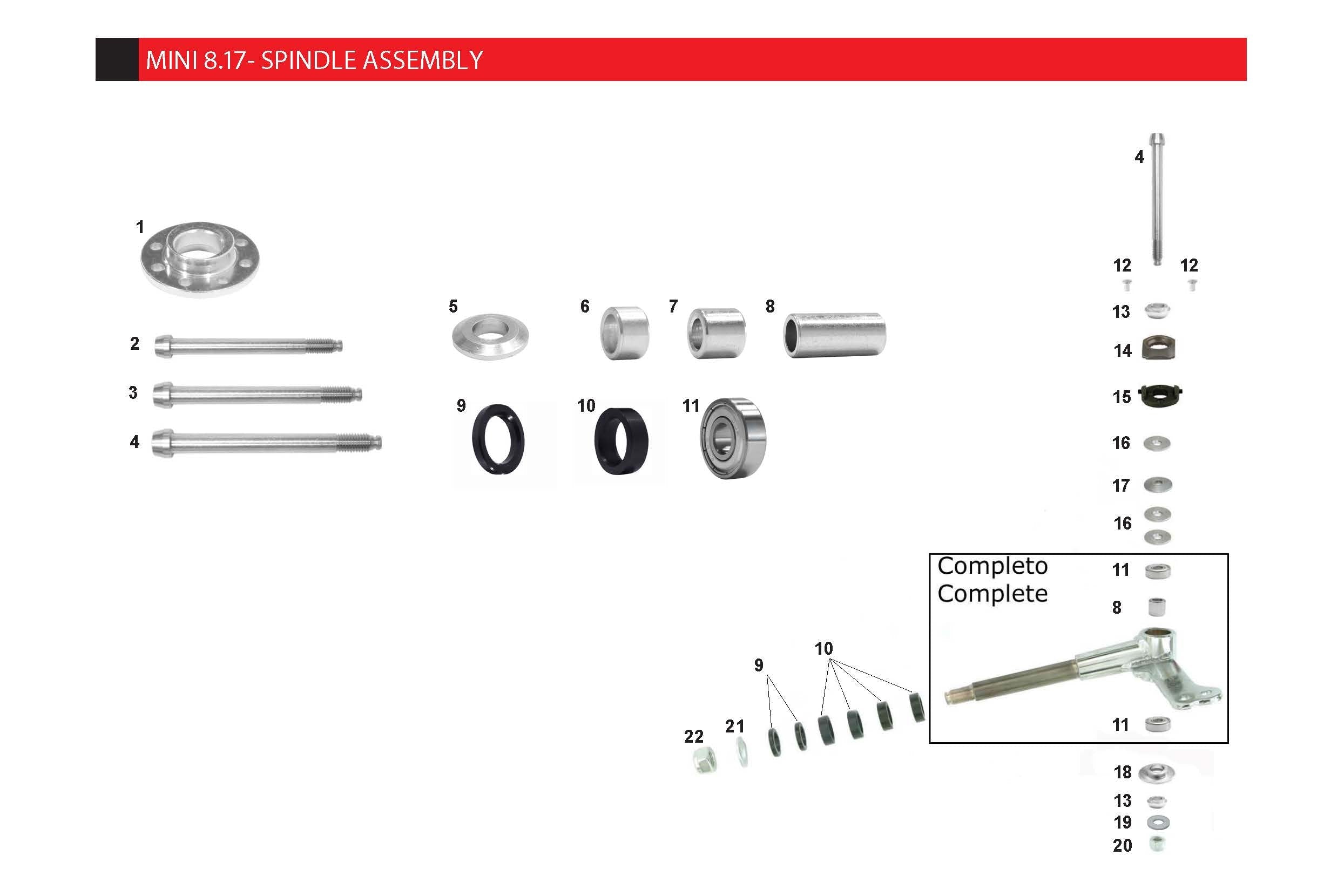

CRG MINI 8MM KINGPIN & 17MM SPINDLE ASSEMBLY

Genuine CRG mini 8mm kingpin & 17mm spindle assembly, listed by CRG part number.

Pick the part from the option list. Each option is one part with its own part number.

• 1. 8-hole eccentric spherical caster (FZ0.01603)
• 2. Stub axle bolt 8x75  (FBN.01197)
• 3. Stub axle bolt 8x85  (FBN.00176)
• 4. Stub axle bolt mini 8x110 black (FBN.02391)
• 5. Spacer 8,5-18x4 stub axle (FBN.00064)
• 6. Stub axle internal spacer 8x7  (SBN.00089)
• 7. Stub axle internal spacer 8x12 (SBN.00056)
• 8. Stub axle internal spacer 8x26 mini (SBN.01043)
• 9. Stub axle spacer 4mm black for Mini (FAN.00068)
• 10. Stub axle spacer 8mm black (FAN.00066)
• 11. 608 bearing for spindle (608ZZ)
• 12. M 4x6 socket head screw      (AFN.00278)
• 13. Bushing half spherical caster hole Ø8 (FZ0.02666)
• 14. Caster plate high B (AFS.02353)
• 15. Caster support plate A (FM0.02352)
• 16. Stub axle spacer 8-28x3 plain (FZ0.03152)
• 17. Stub axle spacer 8-28x6 conical (FZ0.03147)
• 18. Fixed caster mini kart (SZ0.03559)
• 19. Washer 8,5-18x2 (AFN.00108)
• 20. Nut M8 high self-locking (AFN.00128)
• 21. Washer 15-30x2,5 (AFN.01564)
• 22. Nut M14x1,5 self-locking (AFN.00058)

Not sure which one you need? Send us your chassis or engine and year and we will match the part.
