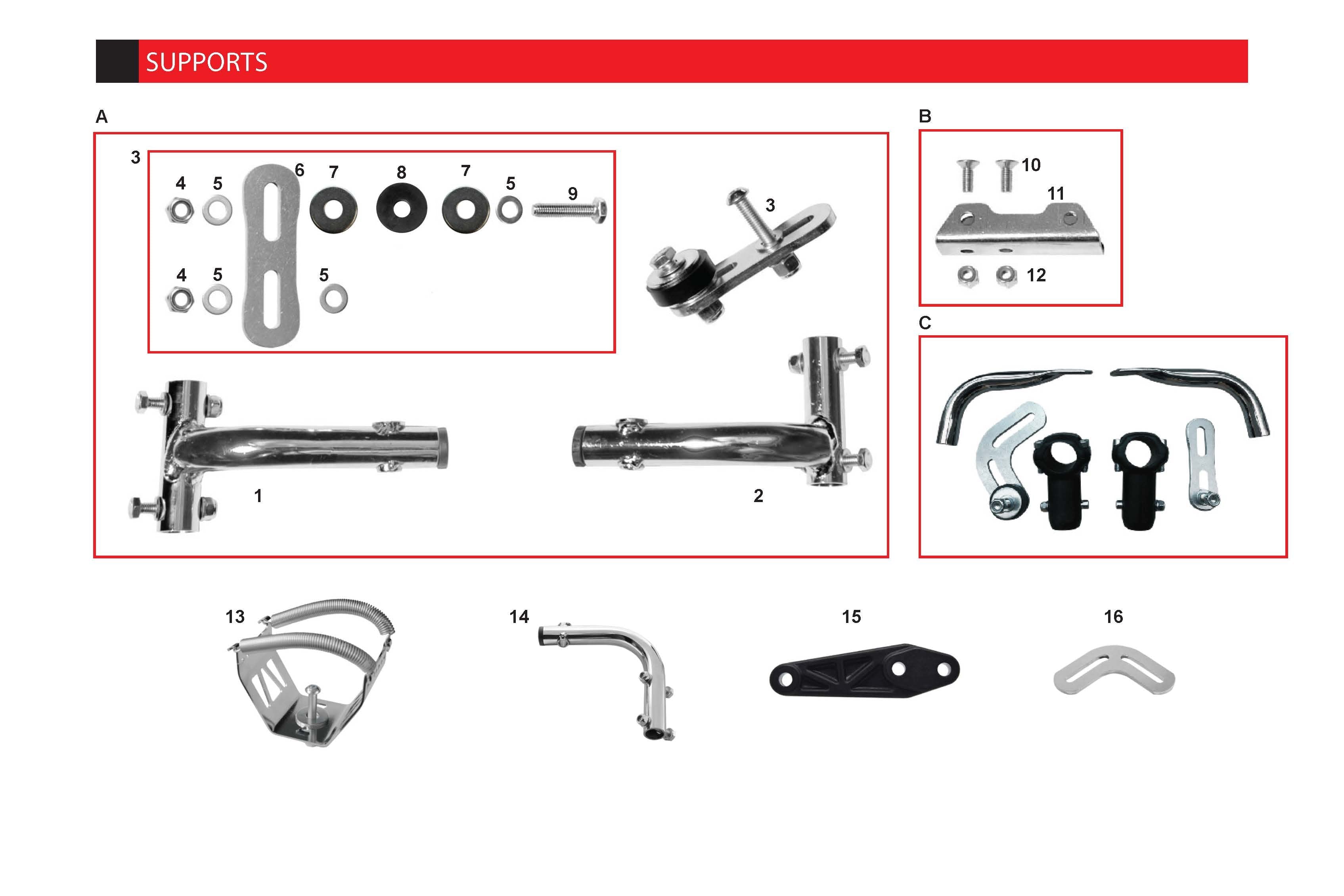

CRG SUPPORTS - EXHAUST PIPE ROTAX

Genuine CRG supports - exhaust pipe rotax, listed by CRG part number.

Pick the part from the option list. Each option is one part with its own part number.

• A. Rotax exhaust support complete (FM0.01824)
• B. Exhaust support clamp complete (FK0.01823)
• C. Exhaust support kit DD2 Ø30 (FKN.05121)
• C. Exhaust support kit DD2 Ø32 (FKN.05122)
• C. Exhaust support kit DD2 Ø30/32 (FKN.05617)
• 1. Exhaust support lf brake side complete (FM0.1824S)
• 2. Exhaust support rh engine complete (FM0.1824D)
• 2. Washer 10,5-30x2,5 (AFN.00125)
• 3. Exhaust support Rotax mini kit L/R (FK0.01994)
• 4. Nut M8 high self-locking (AFN.00128)
• 5. Washer 8,5-16x1,5 (AFN.00350)
• 6. Exhaust support Rotax (SZ0.01535)
• 7. Washer 10,5-30x2,5 (AFN.00125)
• 8. Exhaust cradle rubber (AFS.00088)
• 9. M 8x40 hexagonal head screw (AFN.00910)
• 10. M 6x14 countersunk head screw (TSV.06X014)
• 11. Chromed Rotax muffler support attachment (FC0.01823)
• 12. Nut M6 high self-locking (AFN.00264)
• 13. Exhaust cradle (SC0.06432)
• 13. Exhaust cradle mini complete (FM0.02193)
• 13. M 8x55 convex head screw (AFN.00127)
• 13. Nut M8 high self-locking (AFN.00128)
• 13. Washer 8,5-16x1,5 (AFN.00350)
• 14. Exhaust cradle support DD complete (FM0.00121)
• 15. Exhaust cradle extension (FAN.00983)
• 16. Exhaust cradle spring 10,5 std (SZ0.00122)
• 16. Exhaust support (curved) (SZ0.01537)

Not sure which one you need? Send us your chassis or engine and year and we will match the part.
