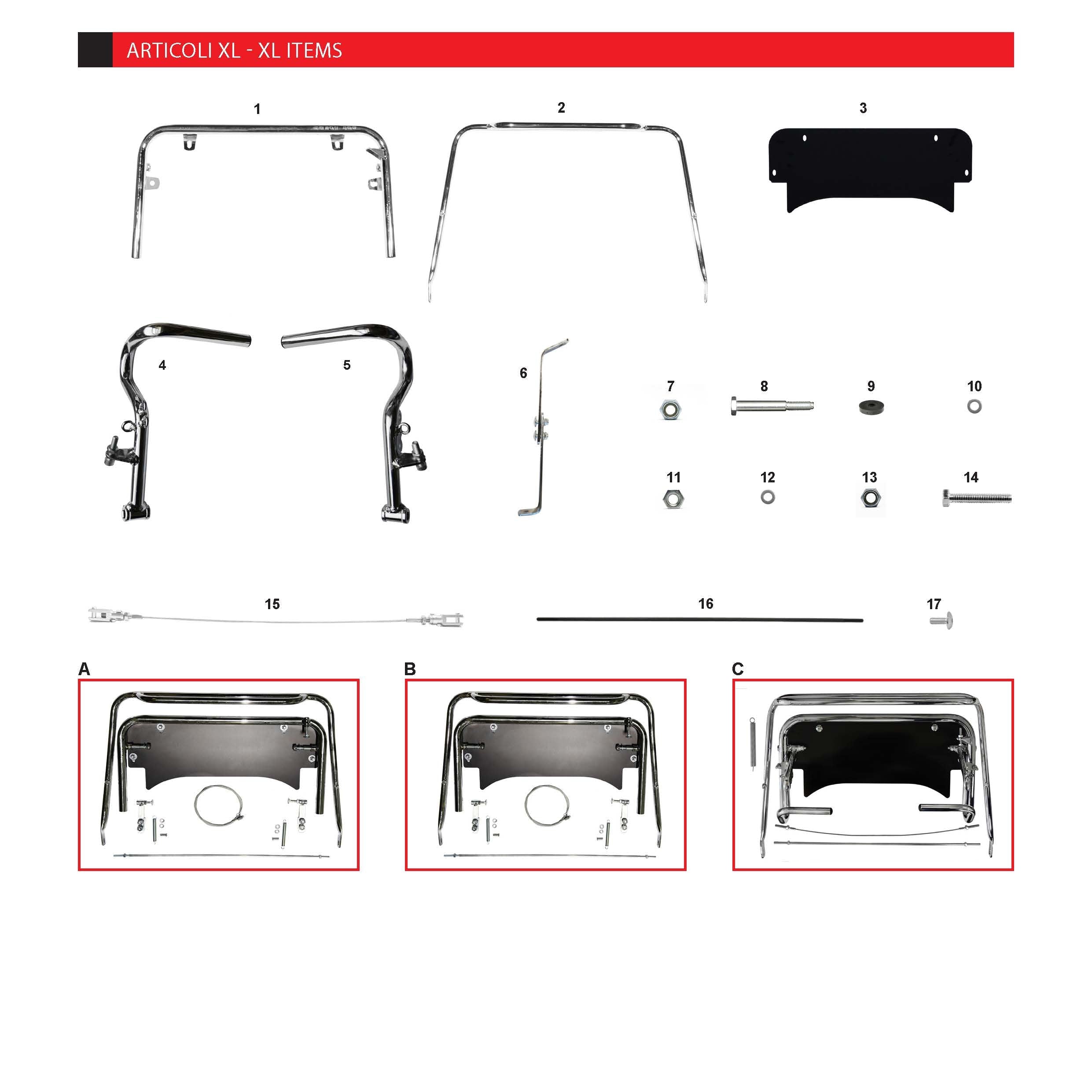

CRG XL ITEMS

Genuine CRG xl items, listed by CRG part number.

Pick the part from the option list. Each option is one part with its own part number.

• A. Extension kit chassis 507/508 KZ (FK0.06272.KZ)
• B. Extension kit chassis 507/508 OK  (FK0.06272.OK)
• C. Extension kit chassis NA2/NA3 (FK0.01652*)
• 1. Front bumper bar below XL (SC0.01134)
• 2. Front bumper bar top XL (SC0.01652)
• 3. Extension floor tray  (FAN.02256)
• 4. Gas pedal back position with cap (SC0.00868)
• 5. Foot brake pedal back position with cap (SC0.00869)
• 6. Front fairing support below XL  (FK0.04457)
• 7. Nut M6 high self-locking (AFN.00264)
• 8. Pedal bolt long (SBN.00271)
• 9. Floor tray rubber (AFS.00258)
• 10. Washer 6,5-18x1,6 (AFN.00263)
• 11. Nut M6 low self-locking (AFN.00106)
• 12. Washer 8,5-17x1,5 (AFN.00129)
• 13. Nut M8 low self-locking (AFN.00160)
• 14. M 6x35 hexagonal head screw (AFN.00283)
• 15. Safety cable cm.52 (AFS.00811)
• 16. Brake rod cm.52 (SBN.01358)
• 17. Floor tray large head screw M 6x16 (AFS.00261)

Not sure which one you need? Send us your chassis or engine and year and we will match the part.
