IAME KA 100CC Clutch Group

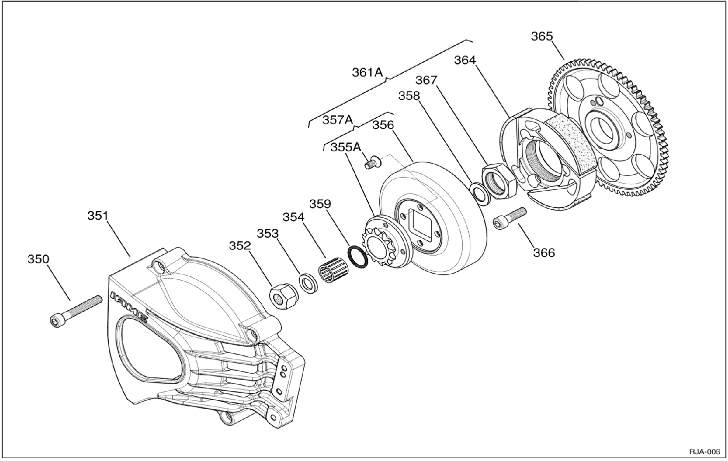

Genuine IAME parts for the IAME KA100 (100 cc reed valve TaG) engine, from the Clutch Group page of the IAME exploded parts diagram.

Pick the part from the option list. Each option is one part with its own part number.

• 350. KIT 20 SCREWS M6x30 (00046-K)
• 351. CLUTCH GUARD KA100 BLACK (A-60595BN)
• 352. STARTER NUT TaG (D-75570)
• 352. SPECIAL NUT & WASHER FOR Z9 SPROKET (X3012553-US)
• 353. EXTERNAL WASHER (D-75573)
• 354. CLUTCH ROLLER CAGE - SHORT (USE WITH O RING) (B-55598)
• 354. CLUTCH ROLLER CAGE - LONG (D-75598)
• 354. BUSHING FOR Z9 SPROCKET (S1145/3)
• 355A. SPROCKET Z9 W/BUSHING AND SCREWS (X30125553-C)
• 355A. SPROCKET Z10 W/SCREWS (X30125554-C)
• 355A. SPROCKET Z11 W/SCREWS (X30125555-C)
• 355A. SPROCKET Z12 W/SCREWS (X30125556-C)
• 355A. SPROCKET Z13 W/SCREWS (X30125557-C)
• 355A. SPROCKET Z16 W/SCREWS (X30125558-C)
• 356. CLUTCH DRUM-NO HOLES X30/KA (X30125550A)
• 357A. CLUTCH DRUM BLIND + SPR Z10 (X30125550A-C10)
• 357A. CLUTCH DRUM-NO HOLES + Z11 SPR (X30125550A-C11)
• 357A. CLUTCH DRUM BLIND + SPR Z12 (X30125550A-C12)
• 358. THRUST INT.WASHER H=1,8mm (D-75565)
• 359. CLUTCH DRUM O-RING (A-60565)
• 361A. COMPLETE CLUTCH ASSY Z10 (X30125841-C10)
• 361A. COMPLETE CLUTCH ASSY Z11 (X30125841-C11)
• 361A. COMPLETE CLUTCH ASSY Z12 (X30125841-C12)
• 364. PADDED HUB X30 '13 (X30125841)
• 365. START.WHEEL REEDJ-AU/LEOP MY09 (IAI-30000)
• 366. KIT OF 20 M6x16 TECNIC BOLTS (00042-K)
• 367. WHEEL LOCKING NUT (IFF-21300)

Not sure which one you need? Send us your chassis or engine and year and we will match the part.
