IAME KA 100CC Crankcase & Crankshaft

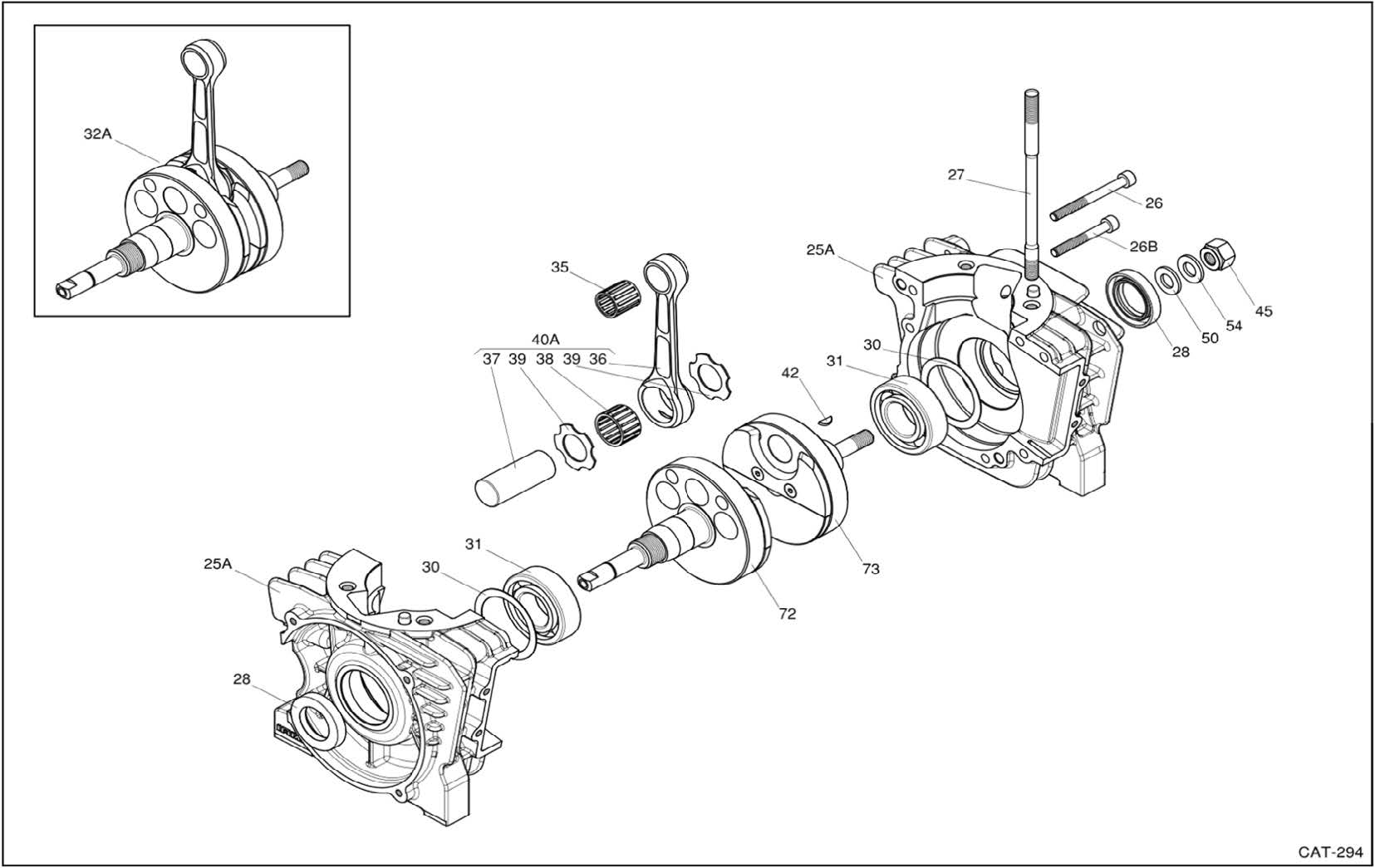

Genuine IAME parts for the IAME KA100 (100 cc reed valve TaG) engine, from the Crankcase & Crankshaft page of the IAME exploded parts diagram.

Pick the part from the option list. Each option is one part with its own part number.

• 25A. CRANKCASE ASSY KA100 (IAB-01041/1)
• 26. KIT OF 20 ALLEN SCREWS 6x55 (00051-K)
• 26B. KIT OF 20 ALLEN SCREWS 6x45 (00049-K)
• 27. CYLINDER TIE-ROD 8x157 (E-38345)
• 28. OIL SEAL MAGN./DRIVE SIDE (X30125425A)
• 30. STEEL SHIM 0.15 (30404)
• 30. STEEL SHIM 0.10 (30407)
• 31. BALL BEARING 6205 TNH/C4 (35396-G)
• 32A. CRANK SHAFT ASSY - KA100 (IAC-00100)
• 35. SMALL END ROLLER CAGE - SILVER (E-10440)
• 35. SMALL END ROLLER CAGE - BLACK (E-10441)
• 37. CRANKPIN 20x47mm (IAC-40140)
• 38. BIG END CAGE (X30125431)
• 39. SILVER BRONZE WASHER (X30125436)
• 40A. CON-ROD ASSY 102mm / PIN 47 KA (ENC50100-47)
• 42. MAGNETO/SPROCKET SHAFT END KEY (10375)
• 45. NUT M10x1 (382)
• 50. KIT OF 20 WASHERS M10 (00305-K)
• 54. KIT 20 WASHERS 10,5x18x0,8 (00342-K)
• 72. HALF CRANK PTO KA100 (GBP-125386)
• 73. HALFCR. IG.S. DRAG/LEOP MY '09 (IAC-30141)
• 74. CRANK PLASTIC STUFFER KIT (1 Piece + Screws) (DBP-09505-K)

Not sure which one you need? Send us your chassis or engine and year and we will match the part.
