IAME KA 100CC Electronic Ignition

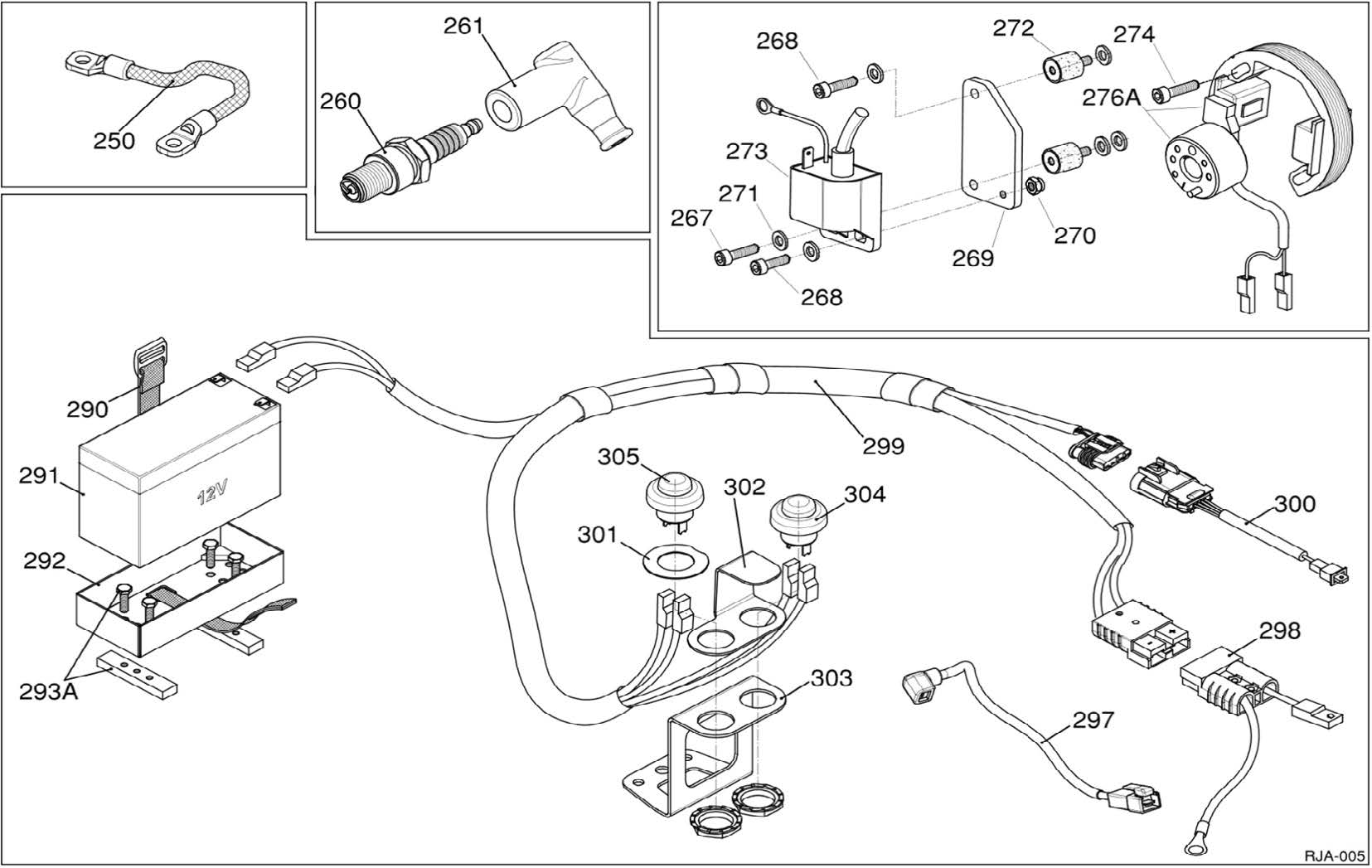

Genuine IAME parts for the IAME KA100 (100 cc reed valve TaG) engine, from the Electronic Ignition page of the IAME exploded parts diagram.

Pick the part from the option list. Each option is one part with its own part number.

• 260. SPARK PLUG NGK BR10EG (SP-BR10EG)
• 260. SPARK PLUG NGK R6252K-105 (SP-R6252K)
• 261. IAME SPARK PLUG CAP BLACK (10544)
• 267. KIT OF 20 SCREWS TCCE 5x20 (00032-K)
• 268. KIT OF 20 ALLEN SCREWS M5x16 (00031-K)
• 269. COIL SUPPORT (A-61510)
• 270. 20 SELF LOCKING NUTS KIT M6 (00378-K)
• 271. KIT 20 WASHERS M5 (00301-K)
• 272. COIL VIBRATION DAMPING (A-61520)
• 273. COIL SELET. BLACK MINI/KA (A-61955)
• 274. KIT OF 20 ALLEN SCREWS 5x25 (00034-K)
• 276A. IGNITION STATOR ASSY KA (A-61951A)
• 290. BATTERY FIXING BELT (A-60904A)
• 292. BATTERY SUPPORT (X30125905)
• 293A. BATTERY SUPPORT CLAMP 30mm W/SCREWS (A-60907A-C)
• 297. STARTER CABLE (IFE-05600)
• 298. STARTER MOTOR CABLE (IFE-05401D)
• 299. CABLE HARNESS DIG. S (IFE-05004)
• 300. IGNITION ADAPTER (IAE-06100)
• 302. SECURITY BRACKET (IFI-70101)
• 303. BUTTONS BRACKET (IFI-70001)
• 304. START BUTTON GREEN (IFE-05003-PS)
• 305. STOP BUTTON RED (IFE-05003-PR)

Not sure which one you need? Send us your chassis or engine and year and we will match the part.
