IAME KA 100CC Intake

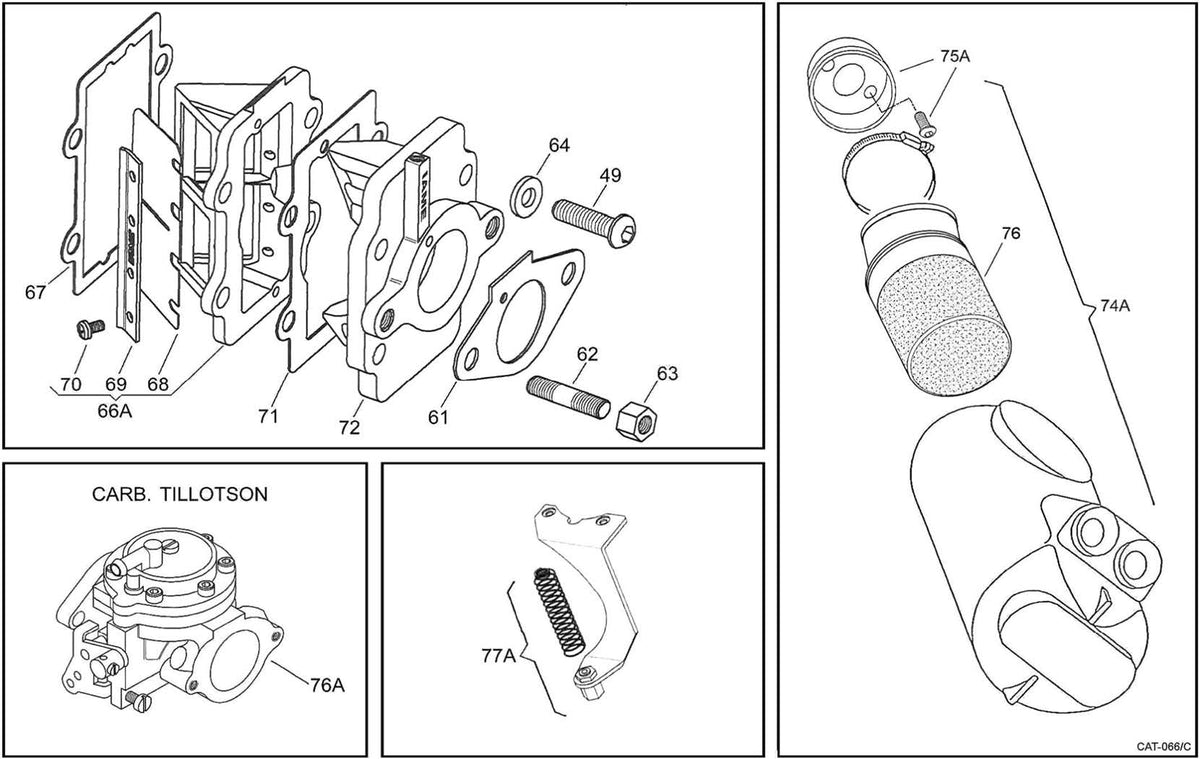

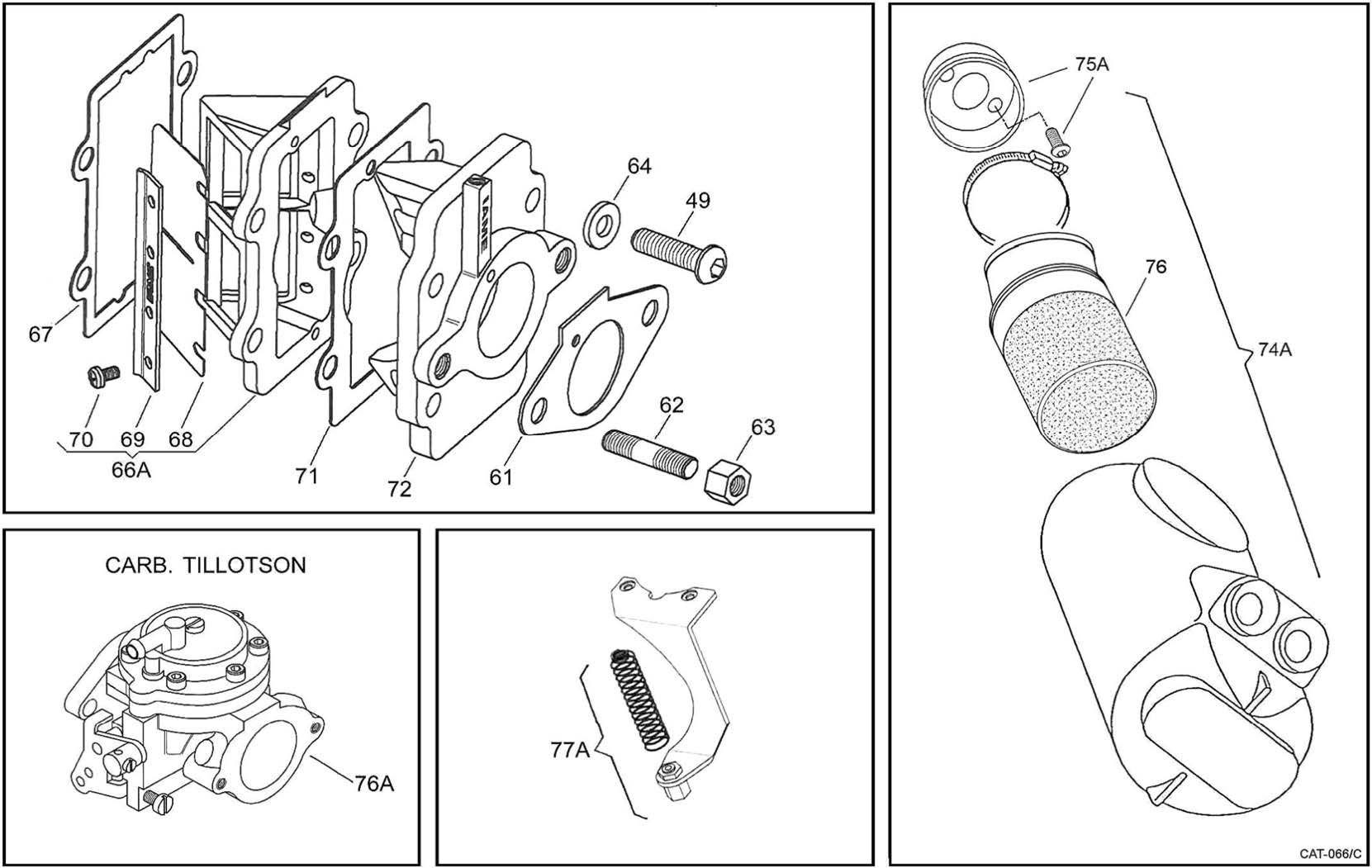

Genuine IAME parts for the IAME KA100 (100 cc reed valve TaG) engine, from the Intake page of the IAME exploded parts diagram.

Pick the part from the option list. Each option is one part with its own part number.

• 49. KIT 20 SOCKET H. SCREWS M6X25 (00045-K)
• 61. CARBURETOR GASKET (10360-B)
• 62. FIX.CARB.STUDBOLT 6x25 (10525)
• 63. 20 HEXAGONAL NUTS KIT M6 (00351-K)
• 64. KIT 20 WASHERS M6 (00302-K)
• 66A. FIBERGLASS REED BLOCK ASSY W/FGLASS REEDS (X3011830-C)
• 67. REED BLOCK GASKET X30 (X30125810A)
• 68. FIBERGLASS REED PETAL (X3011840)
• 69. REED CLIPS (F-11845A)
• 70. KIT 20 SCREWS 1/2 CR.HEAD 3X5 (10380-K)
• 71. TOP CONVEYOR GASKET X30 (X30125809A)
• 72. CONVEYOR/MANIFOLD 28mm (X30125815A)
• 74A. AIRBOX KA (IAG-90000)
• 74A. INLET SILENCER SOCOREM W/MANIFOLD/FILTER (IAG-90000G)
• . INLET SILENCER RAIN COVER - KA (IAG-90000-W)
• 76. RUBBER HOSE WITH FOAM FILTER (10751-A)
• . RUBBER CONNECTOR WITH NO FOAM FILTER - FOR RAIN USE (10751)
• 76A. CARBURETTOR TILL. HW33A (TI-HW-33A)
• 77A. ACCELERATOR CABLE RETURN SPRING (IAG-50200)

Not sure which one you need? Send us your chassis or engine and year and we will match the part.
