IAME KA 100CC Piston

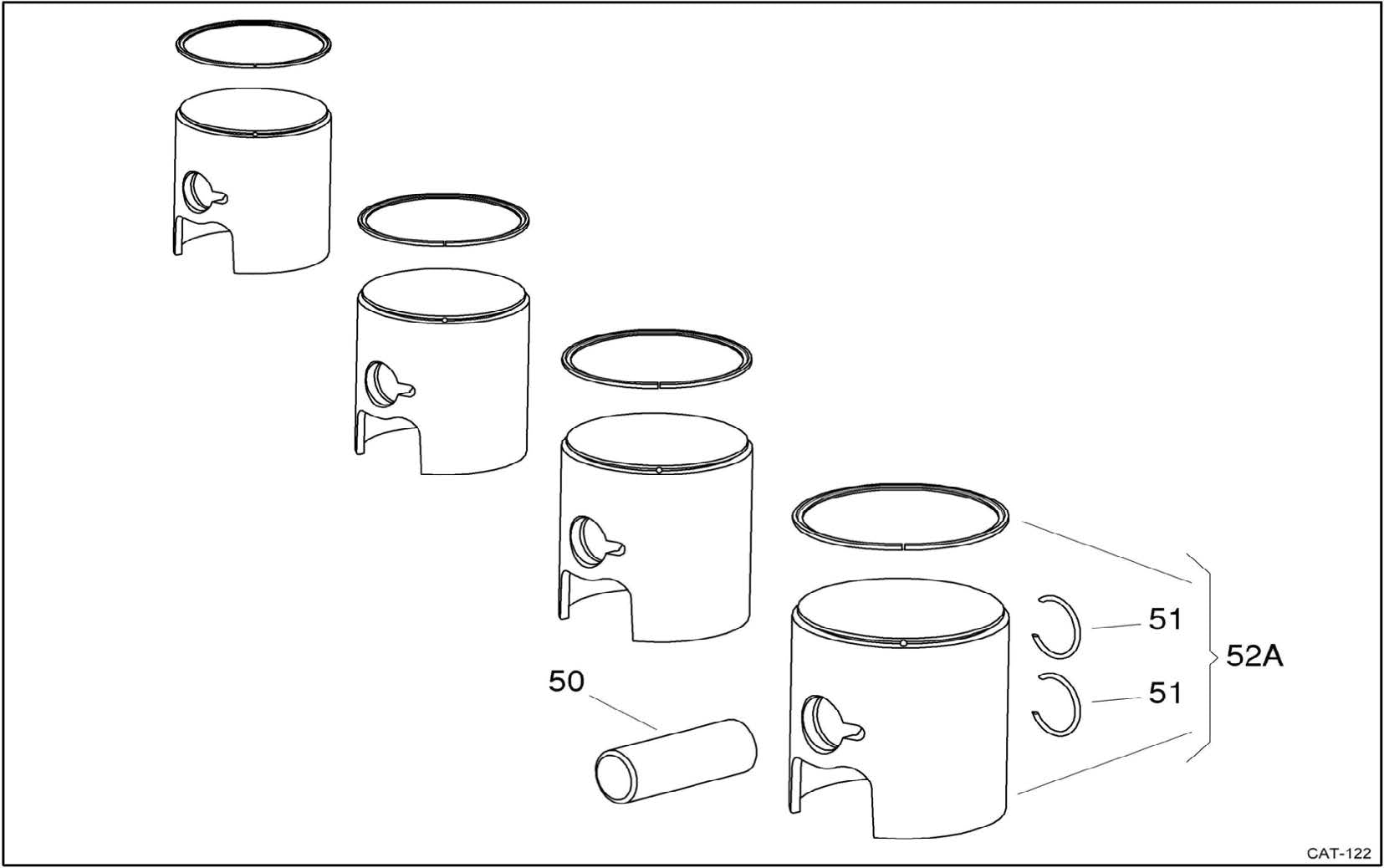

Genuine IAME parts for the IAME KA100 (100 cc reed valve TaG) engine, from the Piston page of the IAME exploded parts diagram.

Pick the part from the option list. Each option is one part with its own part number.

• 50. PISTON PIN - 14x39 "B" (B-10321-B)
• 50. PISTON PIN - 14x39 "R" (B-10321-R)
• 51. CIRCLIP 1.0mm (10343)
• 52A. PISTON KA 48.20g (EBP-85050-CV)
• 52A. PISTON KA 48.22g (EBP-85055-CV)
• 52A. PISTON KA 48.24g (EBP-85057-CV)
• 52A. PISTON KA 48.26g (EBP-85060-CV)
• 52A. PISTON KA 48.28g (EBP-85063-CV)
• 52A. PISTON KA 48.30g (EBP-85065-CV)
• 52A. PISTON KA 48.32g (EBP-85070-CV)
• 52A. PISTON KA 48.34g (EBP-85072-CV)
• 52A. PISTON KA 48.36g (EBP-85075-CV)
• 52A. PISTON KA 48.40g (EBP-85080-CV)
• 52A. PISTON KA 48.42g (EBP-85085-CV)
• 52A. PISTON KA 48.44g (EBP-85087-CV)
• 52A. PISTON KA 48.46g (EBP-85090-CV)
• 52A. PISTON KA 48.48g (EBP-85093-CV)
• 52A. PISTON KA 48.50g (EBP-85095-CV)
• 52A. PISTON KA 48.52g (EBP-85100-CV)
• 53. PISTON RING KA 48.20 (B-65175)
• 53. PISTON RING KA 48.26 (B-65178)
• 53. PISTON RING KA 48.30 (B-65180)
• 53. PISTON RING KA 48.36 (B-65183)
• 53. PISTON RING KA 48.40 (B-65185)
• 53. PISTON RING KA 48.46 (B-65188)
• 53. PISTON RING KA 48.50 (B-65190)

Not sure which one you need? Send us your chassis or engine and year and we will match the part.
