IAME KA 100CC Tillotson HW-33A Carb

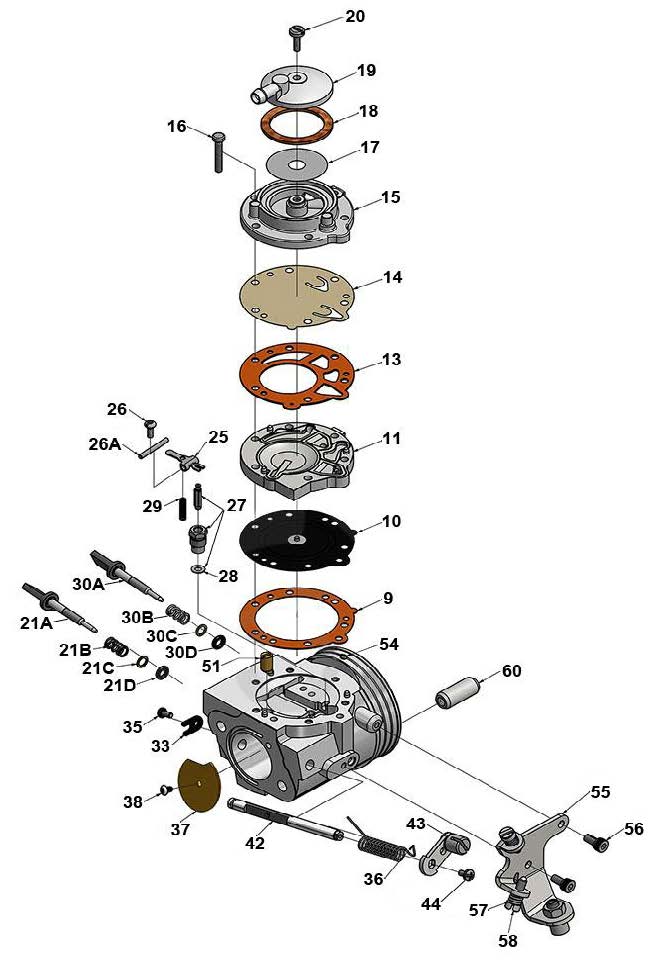

Genuine IAME parts for the IAME KA100 (100 cc reed valve TaG) engine, from the Tillotson HW-33A Carb page of the IAME exploded parts diagram.

Pick the part from the option list. Each option is one part with its own part number.

• 9. DIAPHRAGM GASKET (TI-16-B406)
• 10. DIAPHRAGM (TI-237-600X)
• 11. DIAPHRAGM COVER (TI-91A-275)
• 13. FUEL PUMP GASKET (TI-16-B407X)
• 14. FUEL PUMP DIAPHRAGM (TI-237-162X)
• 14. FUEL PUMP DIAPHRAGM PACK (MYLAR) (10 Pack) (TI-237-223X)
• 15. FUEL PUMP BODY (TI-141-89T)
• 16. FUEL PUMP BODY SCREW (TI-15C-51X)
• 17. FUEL STRAINER SCREEN (TI-95-170X)
• 18. FUEL STRAINER COVER GASKET (TI-16-B205X)
• 19. FUEL STRAINER COVER (TI-91-A251)
• 20. FUEL STRAINER COVER RETAINING SCREW (TI-15-B313X)
• 21A. IDLE MIXTURE SCREW (TI-43-1029)
• 21B. IDLE MIXTURE SCREW SPRING (TI-24-B449X)
• 21C. IDLE MIXTURE SCREW WASHER (TI-78A-256X)
• 21D. IDLE MIXTURE SCREW PACKING (TI-44-361X)
• 25. INLET CONTROL LEVER (TI-155-A27X)
• 26. FULCRUM LEVER SCREW (TI-15-B329X)
• 26A. FULCRUM LEVER PIN (TI-32-79X)
• 27. INLET NEEDLE & SEAT SET (TI-233-721P)
• 28. INLET SEAT GASKET (TI-16-B199X)
• 29. INLET TENSION SPRING 26G (TI-24-B323X)
• 29. INLET TENSION SPRING 31G (TI-24-C296X)
• 29. INLET TENSION SPRING 37G (TI-24-B299X)
• 29. INLET TENSION SPRING 42G (TI-24-C298X)
• 29. INLET TENSION SPRING 46G (TI-24-C297X)
• 30A. HIGH SPEED MIXTURE SCREW (TI-43-1030)
• 30B. HIGH SPEED MIXTURE SCREW SPRING (TI-24B-449X)
• 30C. HIGH SPEED MIXTURE SCREW WASHER (TI-78-A256X)
• 30D. HIGH SPEED MIXTURE SCREW PACKING (TI-44-361X)
• 33. THROTTLE SHAFT CLIP (TI-29-224X)
• 35. THROTTLE SHAFT CLIP RETAINING SCREW (TI-15-C19X)
• 36. THROTTLE RETURN SPRING (TI-24-B381X)
• 37. THROTTLE SHUTTER (TI-14-A118)
• 38. THROTTLE SHUTTER SCREW (TI-15-C20X)
• 42. THROTTLE SHAFT (TI-13-B216)
• 43. THROTTLE LEVER ASSEMBLY (TI-12-1220)
• 44. THROTTLE LEVER RETAINING SCREW (TI-15-C52X)
• 51. IDLE NOZZLE (TI-363-318)
• 54. MAIN PLUG (TI-80-160X)
• 55. CABLE BRAKET (TI-136-562)
• 56. CABLE BRACKET RETAINING SCREW (TI-15-C67X)
• 57. LIMITER SCREW (TI-15-C9X)
• 58. LIMITER SPRING (TI-24-B131X)
• 60. CARBURETTOR MOUNTING NUT (TI-81-377)
• . AUXILIARY CABLE RETURN SPRING (24C-334X)
• . REPAIR KIT (TI-RK-6HW)
• . DIAPHRAGM & GASKET (TI-DG-3HW)
• . INLET NEEDLE & SEAT SET (TI-233-721P)

Not sure which one you need? Send us your chassis or engine and year and we will match the part.
