IAME MINI SWIFT Crankcase & Crankshaft

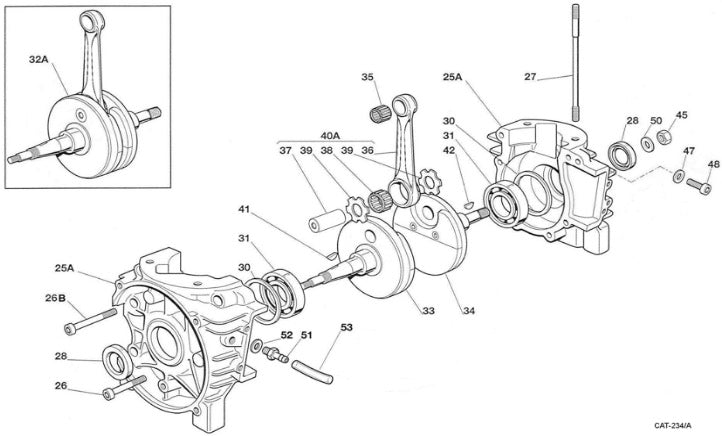

Genuine IAME parts for the IAME Mini Swift (60 cc) engine, from the Crankcase & Crankshaft page of the IAME exploded parts diagram.

Pick the part from the option list. Each option is one part with its own part number.

• 25A. CRANKCASE ASSY MINI USA (A-61486USA)
• 26. KIT OF 20 ALLEN SCREWS 6x45 (00049-K)
• 26B. KIT OF 20 ALLEN SCREWS 6x55 (00051-K)
• 27. CYLINDER TIE-ROD 8x116 (A-61345)
• 28. OIL SEAL TCWJ 20x35x7 (F-10425A)
• 30. STEEL SHIM O.O5 (10410)
• 30. STEEL SHIM O.1O (10407)
• 30. STEEL SHIM O.15 (10409)
• 31. BALL BEARING 6204 C4 (10400-D)
• 32A. CRANKSHAFT MINI/BABY-SW'07 (A-61615A)
• 33. DRIVE S.H.CRANKSHAFT MINI/BABY (A-61385A)
• 34. MAGN.S.H. CRANKSHAFT MINI/BABY (A-61390A)
• 35. SMALL END CAGE 60cc 12x16x16 (A-60440)
• 37. CRANKPIN 18x40 mm (A-60450)
• 38. BIG END CAGE 15 R (B-10431)
• 39. BRONZE WASHER (E-38436)
• 40A. CONROD mm 88-pin 40 MINI'07 (A-61455-40)
• 41. SHAFT END/SPROCKET/MAGNETO KEY (11715)
• 42. MAGNETO/SPROCKET SHAFT END KEY (10375)
• 45. NUT M10x1 (382)
• 47. KIT 20 WASHERS M6 (00302-K)
• 48. KIT 20 SCREWS TCCE M6x12 (00059-K)
• 50. KIT OF 20 WASHERS M10 (00305-K)
• 51. PRESSURE FITTING (D-95800)
• 52. PRESSURE Cu FITT. GASKET (B-71805)
• 53. PRESSURE FITT. TUBE 20cm (A-61810-A)
• . PLASTIC CRANK STUFFER INSERT KIT (A-06105-K)

Not sure which one you need? Send us your chassis or engine and year and we will match the part.
