IAME MINI SWIFT Electronic Ignition 2022

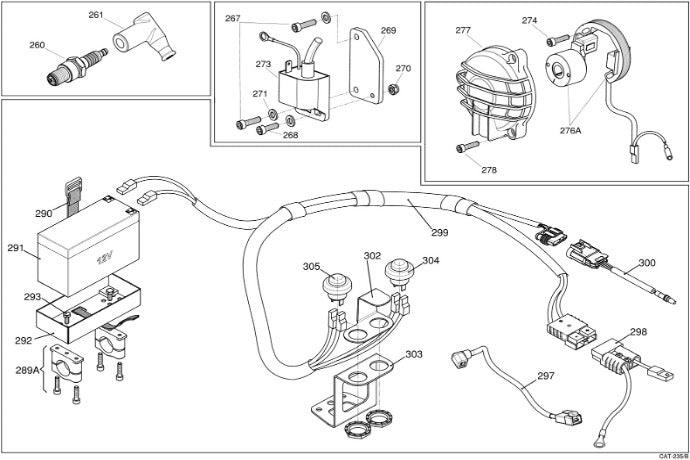

Genuine IAME parts for the IAME Mini Swift (60 cc) engine, from the Electronic Ignition 2022 page of the IAME exploded parts diagram.

Pick the part from the option list. Each option is one part with its own part number.

• 260. SPARK PLUG MINI (SP-AR50)
• 260. SPARK PLUG NGK BR10EG (SP-BR10EG)
• 261. IAME SPARK PLUG CAP BLACK (10544)
• 267. KIT OF 20 SCREWS TCCE 5x20 (00032-K)
• 268. KIT OF 20 ALLEN SCREWS M5x16 (00031-K)
• 269. COIL SUPPORT (A-61510)
• 270. 20 SELF LOCK.NUTS KIT M5 (00376-K)
• 271. KIT 20 WASHERS M5 (00301-K)
• 273. COIL SELET. BLACK MINI/KA (A-61955)
• 274. KIT OF 20 ALLEN SCREWS 5x25 (00034-K)
• 276A. IGNITION SELETTRA MINI '07 (A-61951)
• 277. IGNITION COVER (A-60875B)
• 278. KIT OF 20 SCREWS TCCE 6x18 (00043-K)
• 289A. SUPP.BATT.CLAMP 28mm W/SCREWS (A-60906A-C)
• 290. BATTERY FIXING BELT (A-60904A)
• 292. BATTERY SUPPORT (X30125905)
• 293. KIT OF 20 HEXAGONAL SCREWS 6x10 (00159-K)
• 297. STARTER CABLE (IFE-05600)
• 298. STARTER MOTOR CABLE (IFE-05401D)
• 299. CABLE HARNESS DIG. S (IFE-05004)
• 300. IGNITION ADAPTER (IAE-06100)
• 302. SECURITY BRACKET (IFI-70101)
• 303. BUTTONS BRACKET+A195:D199 (IFI-70001)
• 304. START BUTTON (IFE-05003-PS)
• 305. STOP BUTTON (IFE-05003-PR)

Not sure which one you need? Send us your chassis or engine and year and we will match the part.
