IAME

IAME MINI SWIFT Tillotson HW-31A Carb

$8.80

Option Quantity

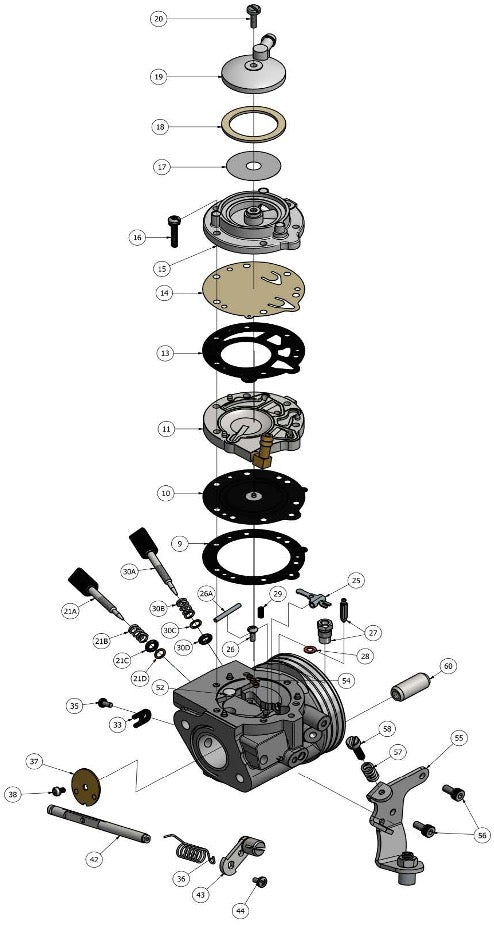

Genuine IAME parts for the IAME Mini Swift (60 cc) engine, from the Tillotson HW-31A Carb page of the IAME exploded parts diagram.

Pick the part from the option list. Each option is one part with its own part number.

9. DIAPHRAGM GASKET (16-B237X)
10. DIAPHRAGM (237-600X)
11. DIAPHRAGM COVER ASSY HW-31A (TI-91-1031T)
13. FUEL PUMP GASKET (16-B392X)
14. FUEL PUMP DIAPHRAGM (TI-237-162X)
14. FUEL PUMP DIAPHRAGM PACK (MYLAR) (10 Pack) (TI-237-223X)
15. FUEL PUMP BODY (TI-141-89T)
16. FUEL PUMP BODY SCREW (TI-15C-51X)
17. FUEL STRAINER SCREEN (TI-95-170X)
18. FUEL STRAINER COVER GASKET (TI-16-B205X)
19. FUEL STRAINER COVER (TI-91-A251)
20. FUEL STRAINER COVER RETAINING SCREW (TI-15-B313X)
25. INLET CONTROL LEVER (TI-155-A27X)
26. FULCRUM LEVER SCREW (15-C329X)
27. INLET NEEDLE & SEAT SET (TI-233-720P)
28. INLET SEAT GASKET (16-B199X)
29. INLET TENSION SPRING (TI-24-B323X)
33. THROTTLE SHAFT CLIP (TI-29-224X)
35. THROTTLE SHAFT CLIP RETAINING SCREW (15-C19X)
36. THROTTLE RETURN SPRING (TI-24-B381X)
37. THROTTLE SHUTTER (TI-14-A96)
38. THROTTLE SHUTTER SCREW (TI-15-C20X)
42. THROTTLE SHAFT (TI-13-B215)
43. THROTTLE LEVER ASSEMBLY (TI-12-1218)
44. THROTTLE LEVER RETAINING SCREW (TI-15-C52X)
52. WELCH PLUG (TI-179-62)
54. MAIN PLUG (TI-80-160X)
55. CABLE BRAKET (TI-136-559)
56. CABLE BRACKET RETAINING SCREW (15-C67X)
57. LIMITER SCREW (15-C9X)
58. LIMITER SPRING (TI-24-B131X)
60. CARBURETTOR MOUNTING NUT (TI-81-377)
21A. IDLE MIXTURE SCREW (TI-43-1034)
21B. IDLE MIXTURE SCREW SPRING (TI-24-B449X)
21C. IDLE MIXTURE SCREW WASHER (TI-78A-256X)
21D. IDLE MIXTURE SCREW PACKING (TI-44-361X)
26A. FULCRUM LEVER PIN (32-79X)
30A. HIGH SPEED MIXTURE SCREW (TI-43-1034)
30B. HIGH SPEED MIXTURE SCREW SPRING (TI-24B-449X)
30C. HIGH SPEED MIXTURE SCREW WASHER (TI-78A-256X)
30D. HIGH SPEED MIXTURE SCREW PACKING (TI-44-361X)
. AUXILIARY CABLE RETURN SPRING (24C-334X)

Not sure which one you need? Send us your chassis or engine and year and we will match the part.

Shipped from Vacaville, or collect at the shop or the tent. Questions: (510) 825-9182.
