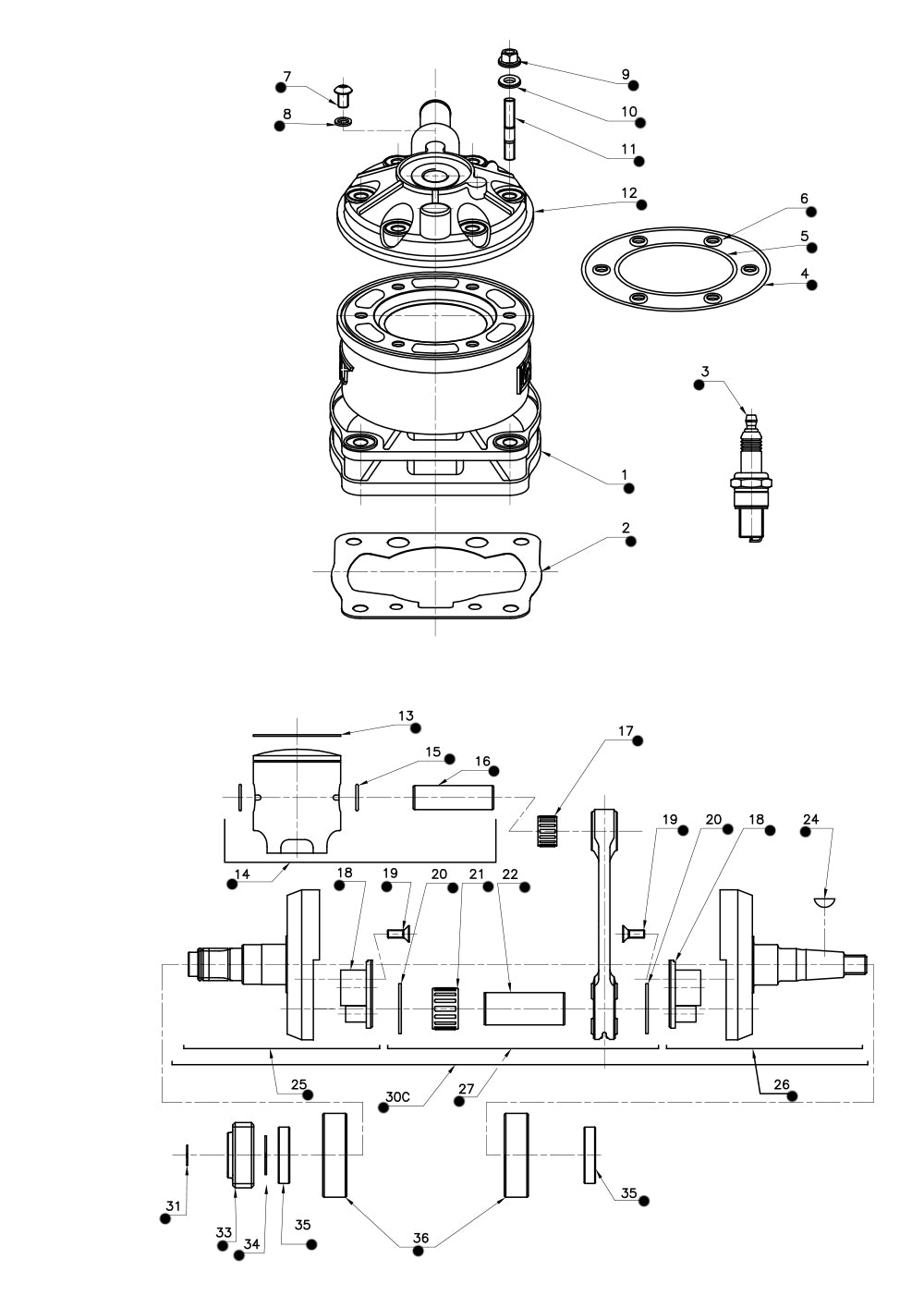

ROK Shifter OTK Engine Parts - Head, Cylinder, Crankshaft and Piston Assembly

ROK Shifter OTK Engine Parts - Head, Cylinder, Crankshaft and Piston Assembly from OTK.

Pick the part from the option list. Each option is one part with its own part number.

• 1. COMPLETE CYLINDER (W7000703000400)
• 2. Cylinder Basis Gasket 0.1
• 2. Cylinder Basis Gasket 0.2
• 2. Cylinder Basis Gasket 0.3
• 2. Cylinder Basis Gasket 0.4
• 2. Cylinder Basis Gasket 0.5
• 3. SPARK PLUG NGK b10 eg (W003)
• 4. O-RING CYLINDER HEAD 2400 (W10019/1)
• 5. O-RING HEAD 2237 NBR (W620)
• 6. O-RING STUD BOLT 2031 (W627)
• 7. ROUNDHEAD SCREW 6x10mm 10.9 (W511/10)
• 8. COPPER GASKET 6x10x1,5 mm (W10662)
• 9. FLANGE NUT M8x10 (W530/10FL)
• 10. PLAIN WASHER D.8x17x1,5 mm (R.P.8X17)
• 11. CYLINDER HEAD STUDBOLT M8x41 (W10043)
• 13. Piston ring for piston1 53,91
• 12. ENGINE HEAD ROK SHIFTER (W10010/SHF)
• 14. SENIOR EXHAUST MANIFOLD
• 15. PISTON PIN CIRCLIP d.15 (W10081)
• 16. PISTON PIN (D15XD10X45.2) (W7000115000600)
• 17. Small end needle cage shifter VORTEX1 15x19x20 B2
• 17. Small end needle cage shifter VORTEX1 15x19x20 B4
• 18. NYLON STUFFER (W10326)
• 19. FLATHEAD SCREW M5x12 10.9 (W522/12)
• 20. SILVER-PLATED SHIM D.20,1 mm (W10310/KF)
• 21. SILVER-PLATED CAGE IKO (W10320)
• 22. CRANK PIN (D.20x6x50 mm) (W7000123000500)
• 24. IGNITION KEY 13x5x3 (W450)
• 25. COMPLETE HALF CRANKSHAFT (W10353/RVXXC)
• 26. COMPLETE HALF VILEBREQUIN (W10340/RVXXC)
• 27. COMPLETE SHIFTER CONROD 110 mm (W10308/SHFC)
• 30C. COMPLETE CRANKSHAFT SHIFTER (W10355/RVXXC)
• 31. ELASTIC RING SW 15 CRANKSHAFT (W10274)
• 33. PRIMARY TRANSMISSIN SPROCKET (W10275/3)
• 34. ELASTIC RING SW 19 CRANKSHAFT (W10276)
• 35. OIL SEAL FPJ20x35x7 DOUBLE LIP (W310)
• 36. BEARING SKF BC1-1442 B (W10370)

Not sure which one you need? Send us your chassis or engine and year and we will match the part.
