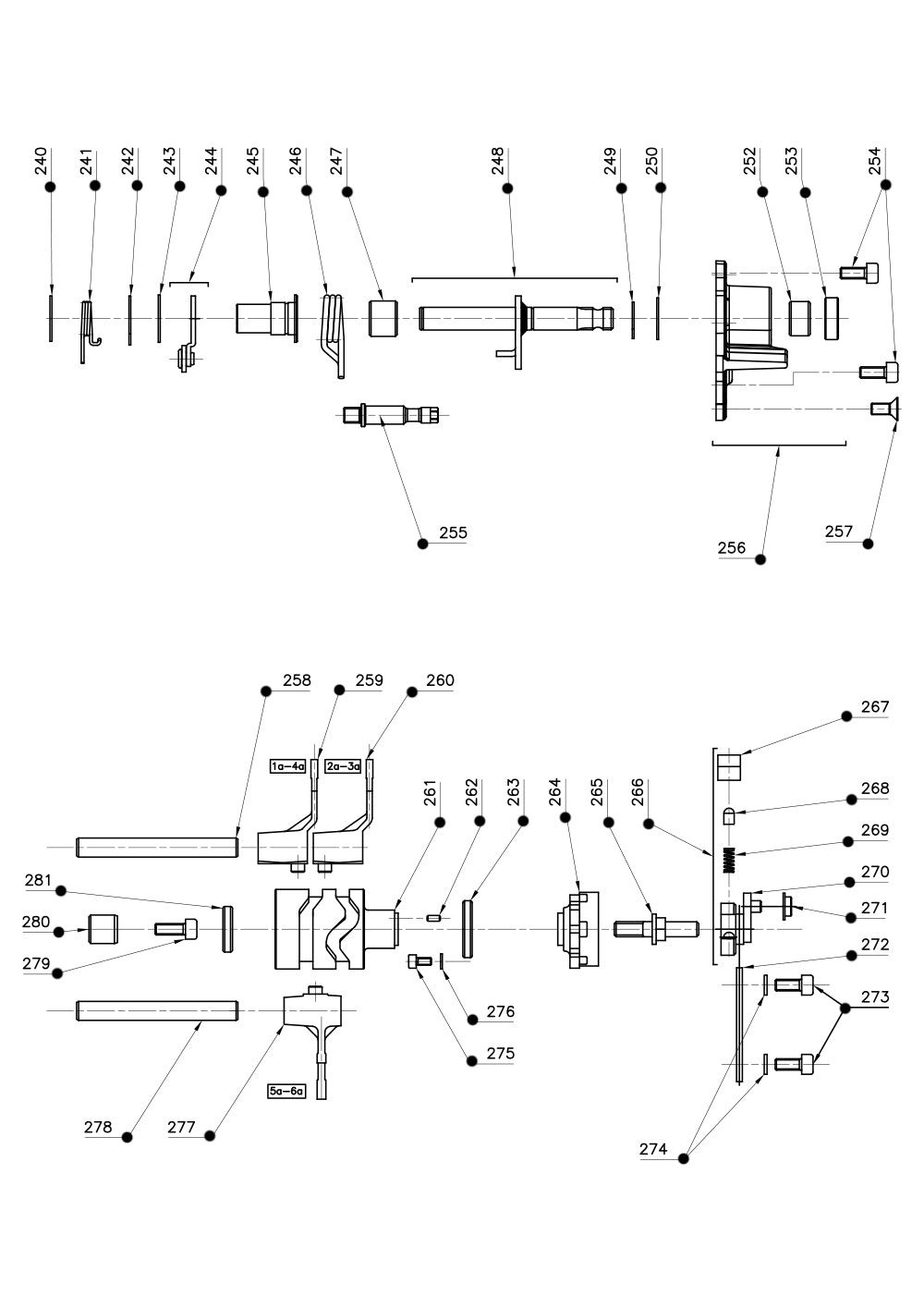

ROK Shifter OTK Engine Parts Shift Mechanism Assembly

ROK Shifter OTK Engine Parts Shift Mechanism Assembly from OTK.

Pick the part from the option list. Each option is one part with its own part number.

• 240. LOCATING SPRING WASHER 15x24x1 (W10417)
• 241. PRESELECTOR PAWL SPRING (W10419)
• 242. SEEGER A-17 (W10415)
• 243. PAWL BUSH WASHER d.17x25x1 (W10416)
• 244. COMPLETE LOCATING LEVER (W10431/C)
• 245. PRESELECTOR PIN WASHER (W10420)
• 260. PRESELECTOR SPRING (W10403)
• 247. PRESELECTOR SPRING SPACER (W10402/1)
• 248. PRE-SELECTIVE PIN CPL (W7010638300100)
• 249. SEEGER A-12 (W10421)
• 250. PRESELECTOR PIN WASHER (W10420)
• 252. ROLLER CASE HK 1212 (W10440)
• 253. PRESELECTOR OIL SEAL d.12x22x7 (W10448)
• 254. SOCKET HEAD SCREW M6x14 8.8 (W510/14)
• 255. REINFORCED PRESELECTOR SPRING (W10404/1)
• 256. COMPLETE GEARBOX PRESELECTOR (W10453/RVXXC)
• 257. FLATHEAD SCREW M6x14 (W512/14)
• 258. SHIFTER FORKS PIN d.10x85 (W10539)
• 259. 1st AND 4th SPEED SHIFTER FORK (W10426)
• 260. 2nd AND 3rd SPEED SHIFTER FORK (W10425)
• 261. SHIFT CAM SHIFTER/RKZ (W10570/RKZ)
• 262. ROLLER CAM D.3x7,8 (W10571)
• 263. ROLLER CAM D.3x7,8 (W10575)
• 264. PRESELECTOR CAM RKZ (W10405/RKZ)
• 265. PRESELECTOR CAM PIN (W10407)
• 266. COMPLETE PRESELECTOR RATCHET (W10406/C)
• 267. PRESELECTOR RATCHET DRIVING (W10408)
• 268. DRIVING DOGS SPRING CAP (W10409)
• 269. DRIVING DOGS SPRING (W10410)
• 270. PRESELECTOR RATCHET WHEEL (W7010638000200)
• 271. PRESELECTOR CRANK WHEEL (W10401)
• 272. RATCHETS PLATE (W7010687700100)
• 273. SCREW TBTX M6X14 (W7024381000800)
• 274. PLAIN WASHER D.6.3x12,5x1 mm (R.P.6X12)
• 275. SOCKET HEAD SCREW M4x8 8.8 (V.TCE4X8)
• 276. FLAT WASHER M4x9 (W585/09)
• 277. 5th AND 6th SPEED SHIFTER FORK (W10423)
• 278. SHIFTER FORKS PIN d.10x85 (W10539)
• 279. SOCKET HEAD SCREW 6x16mm 8.8 (V.TCE6X16)
• 280. SHIFT CAM BEARING SUPPORT (W10576)
• 281. INSERT CAM RIGHT 6802/A (W10574)

Not sure which one you need? Send us your chassis or engine and year and we will match the part.
