OTK

ROK Shifter OTK Engine Parts Clutch and Ignition Assembly

$40.28

Option Quantity

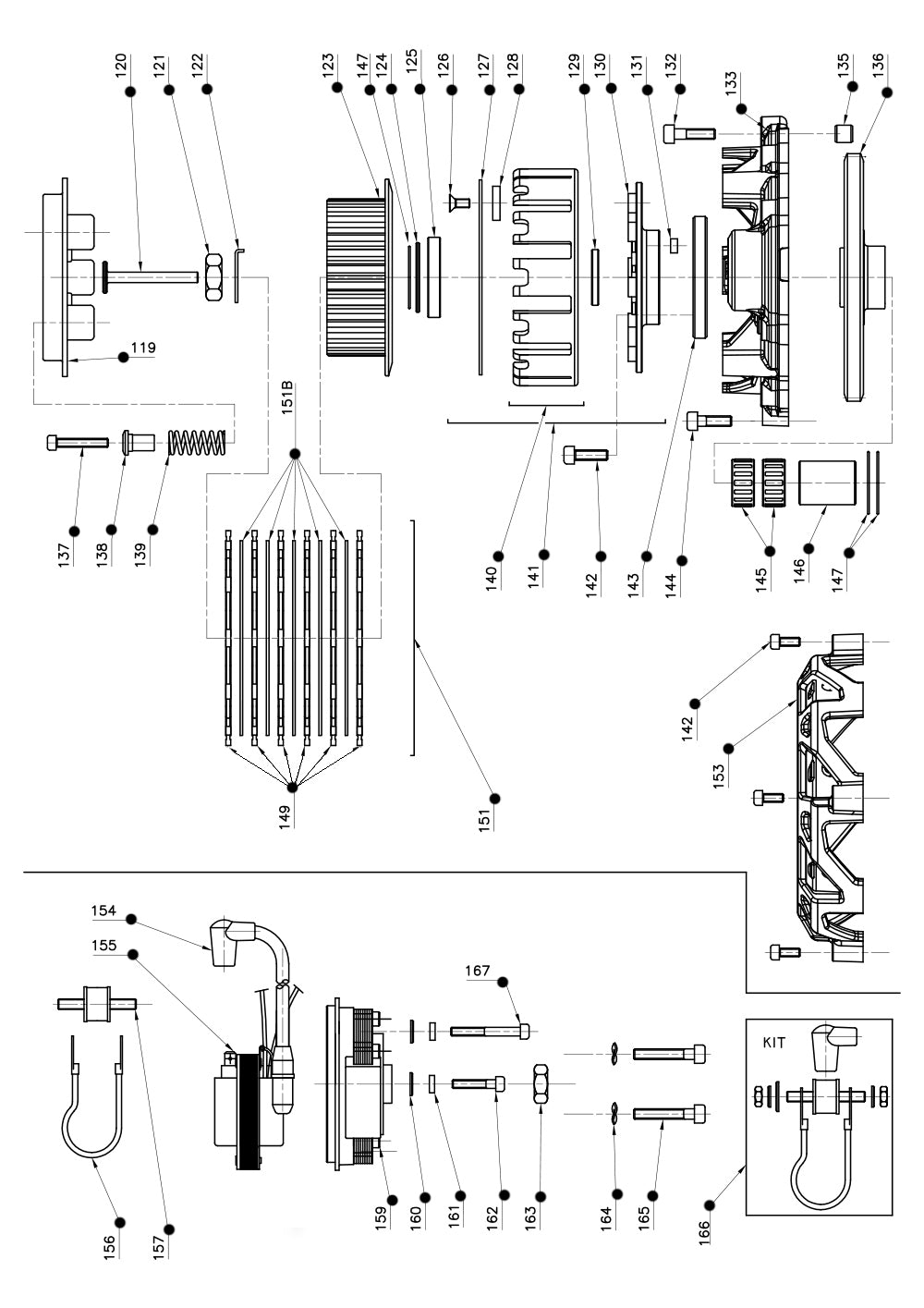

ROK Shifter OTK Engine Parts Clutch and Ignition Assembly from OTK.

Pick the part from the option list. Each option is one part with its own part number.

119. CLUTCH DISKS COVER (W10612/RVXX)
120. CLUTCH LIFTER (W10644)
121. CLUTCH DRUM NUT (W10620)
122. DRUM NUT RETAINER (W10611)
123. COMPLETE CLUTCH DRUM (W10610/RVXXC)
124. CLUTCH DRUM WASHER 20x40x2 (W10624)
125. CLUTCH DRUM SPACER FOR DAMPER (W10673)
126. FLATHEAD SCREW M5x10 10.9 (W522/10)
127. DAMPER COVER (W10671)
128. DAMPER RUBBER (W10672)
129. CLUTCH HOUSING OIL SEAL (W10626)
130. DAMPER PLATE RKZ-SHIFTER (W10670/RKZ)
131. CLUTCH HOUSING KEY 4x4x8 (W10636)
132. SOCKET HEAD SCREW 6x30 mm (V.TCE6X30)
133. PRIMARY TRANSMISSION COVER SHF (W10211/RVXX)
135. CRANKCASE DOWEL 10x10,5x6,5 (W075/1)
136. PRIMARY TRANSMISSION GEAR Z67 (W10280/3)
137. SOCKET HEAD SCREW 5x30 mm (V.TCE5X30)
138. CLUTCH SPRING SPACER M5 (W10634)
139. CLUTCH SPRING (W10618)
140. CLUTCH HOUSING WITH RING (W10608/RKZC)
141. COMPLETE CLUTCH HOUSING (W10670/RKZC)
142. SOCKET HEAD SCREW 6x20 mm (V.TCE6X20)
143. PRIMARY TRANSMISSION COVER (W10642)
144. SOCKET HEAD SCREW 6x25 mm (V.TCE6X25)
145. PRIMARY CAGE K 25x29x13 (W10640)
146. INTERNAL RING LR 20x25x38,5 (W10606/1)
147. PRIMARY TRANSMISSION WASHER (W10607)
149. LINED DISK (W7000500000100)
151. CLUTCH DISKS KIT SHIFTER/RKZ (W10615)
151B. IRON BARE DISK (W10614/1)
153. CLUTCH GUARD SHIFTER/RKZ (W10625/RVXX)
154. SPARK PLUG CAP / BOOT (W420AAA)
155. ROK SHIFTER SELETTRA COIL (W408AAB)
156. GROUND CABLE STANDARD (W430-STANDARD)
156. GROUND CABLE COPPER (W430-COPPER)
157. COIL FIXING SILENT-BLOCK (W440)
159. ROK SHIFTER SELETTRA COMPLETE IGNITION (W407AAB)
160. PLAIN WASHER D.6.3x12,5x1 mm (R.P.6X12)
161. FLAT WASHER 5,2x13x3 (W580/1)
162. SOCKET HEAD SCREW 5x30 mm (V.TCE5X30)
163. IGNITION ROTOR NUT (W695)
164. ELASTIC WASHER 6x12 (W571/12)
165. SOCKET HEAD SCREW 6x30 mm (V.TCE6X30)

Not sure which one you need? Send us your chassis or engine and year and we will match the part.

Shipped from Vacaville, or collect at the shop or the tent. Questions: (510) 825-9182.
