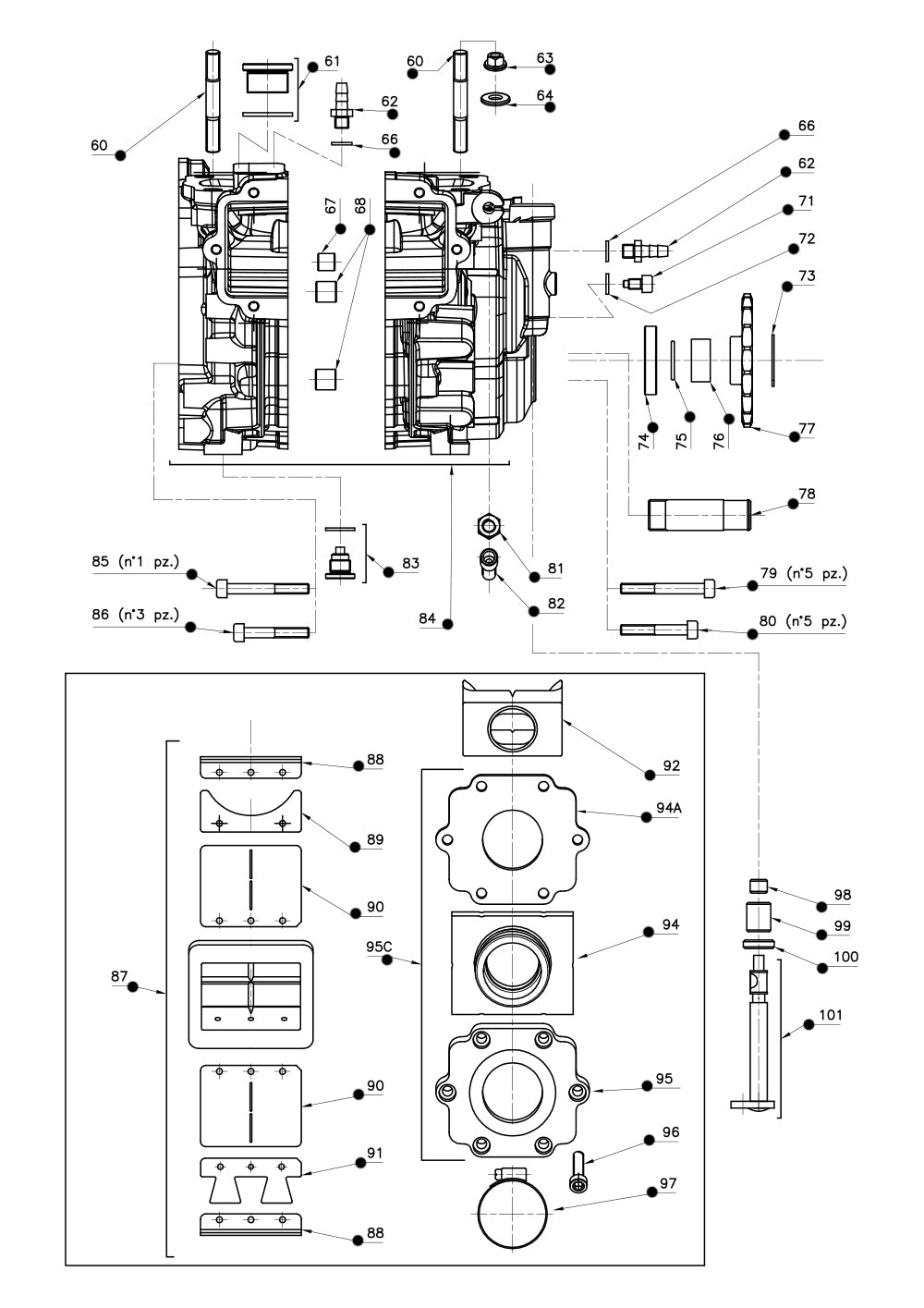

ROK Shifter OTK Engine Parts Crankcase and Reed Block Assembly

ROK Shifter OTK Engine Parts Crankcase and Reed Block Assembly from OTK.

Pick the part from the option list. Each option is one part with its own part number.

• 60. CYLINDER STUDBOLT M8x62+R20 (W10044)
• 61. OIL PLUG TCE4E M18x1,5 (W2035/ROK)
• 62. DEPRESSION PIPE FITTING M8 (W800)
• 63. FLANGE NUT M8x10 (W530/10FL)
• 64. PLAIN WASHER D.8x17x1,5 mm (R.P.8X17)
• 66. COPPER GASKET D.8x12x1 (W10267)
• 67. CRANKCASE DOWEL 10x10,5x6,5 (W075/1)
• 68. CRANKCASE DOWEL d.12x12x7 (W10261)
• 71. CLUTCH LEVER RETAIN SCREW (W10660)
• 72. COPPER GASKET 6x10x1,5 mm (W10662)
• 73. Gear Clip (W10560)
• 74. SPROCKET OIL SEAL 25x40x7 mm (W10552)
• 75. SPROCKET SPACER O-RING 2075 (W10549)
• 76. SPROCKET SPACER RING (W10550/1)
• 77. CHAIN SPROCKET Z16 (W1055-Z16)
• 77. CHAIN SPROCKET Z17 (W1055-Z17)
• 77. CHAIN SPROCKET Z18 (W1055-Z18)
• 79. SOCKET HEAD SCREW 6x55 mm (V.TCE6X55)
• 80. SOCKET-HEAD SCREW M6x40 mm 8.8 (V.TCE6X40)
• 81. HEXAGONAL NUT 8MA (W530/06)
• 82. CLUTCH CABLE REGISTER (W10350)
• 83. OIL PLUG TCEM1 M12x1.5 (W10252)
• 84. COMPLETE CRANKCASE SHIFTER (W10240/RVXX)
• 85. SOCKET-HEAD SCREW 6x65 mm (V.TCE6X65)
• 86. SOCKET HEAD SCREW 6x50 mm (V.TCE6X50)
• 87. COMPLETE REED PYRAMID 125/RVZ (PIRAMIDE-SH)
• 88. 125/RVS REED VALVE PYRAMIDE (W10253)
• 89. TOP REED STIFFENER (W10216)
• 90. PETAL 0,4 (W10221/1)
• 91. TOP REED STIFFENER (W10216)
• 92. REED VALVE PYRAMID INTERNAL (W10247/1RVZ)
• 94. RUBBER INLET MONIFOLD EN GOMME (W10268/RVZ2S)
• 94A. REED VALVE PYRAMIDE GASKET (W10351/1RVX)
• 95. MANIFOLD FLANGE 69x55 (W10268/RKZ1S)
• 95C. INLET MANIFOLD 69x55 (W10268/RKZS)
• 96. SOCKET HEAD SCREW 6x16mm 8.8 (V.TCE6X16)
• 97. CARBURETTOR CLAMP (W10277)
• 98. ROLLER CASE HK 0608 (W10654)
• 99. ROLLER CASE HK 1015 (W10656)
• 100. CLUTCH LEVER OIL SEAL 10x18x4 (W10658)
• 101. CLUTCH LEVER RVX/KZ (W10652/RVX)

Not sure which one you need? Send us your chassis or engine and year and we will match the part.
