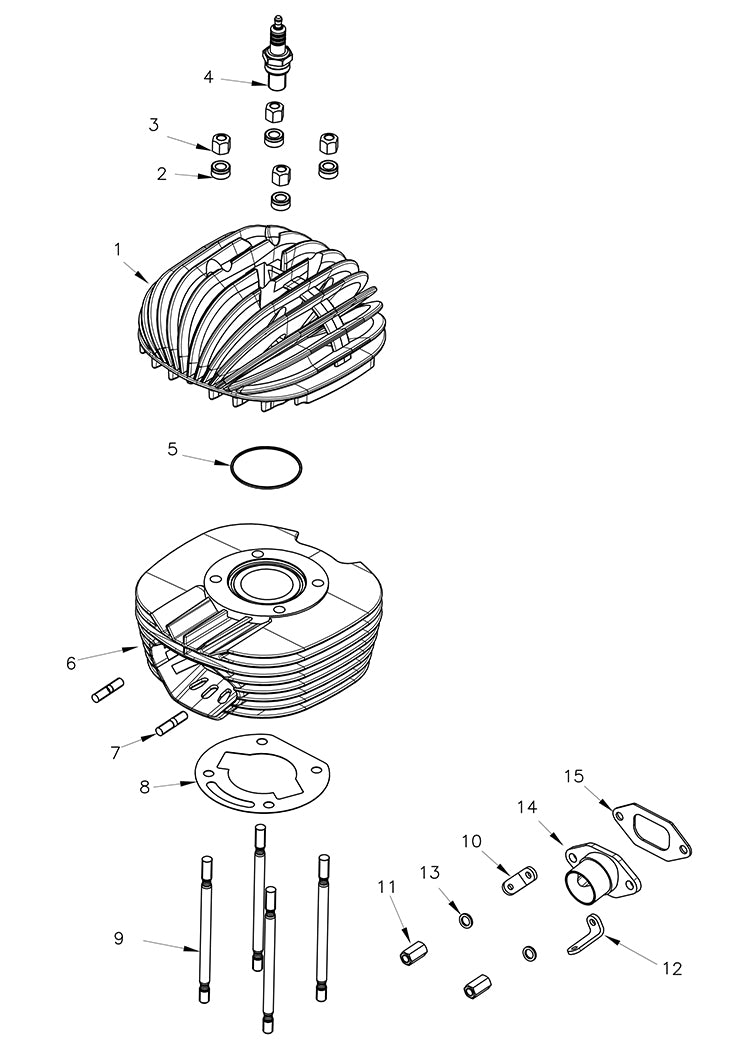

VLR100 OTK Engine Parts Top End, Cylinder and Head Assembly

VLR100 OTK Engine Parts Top End, Cylinder and Head Assembly from OTK.

Pick the part from the option list. Each option is one part with its own part number.

• 1. ENGINE HEAD (W7000900300300)
• 2. HEAD WASHER 8,5x15x8 (W560)
• 3. HEAD-NUT HIGH-SET M8 ZNB (W530/12)
• 4. SPARK PLUG NGK b10 eg (W003)
• 5. O-RING HEAD 2237 NBR (W620)
• 6. COMPLETE CYLINDER (W7000703000700)
• 7. EXHAUST STUDBOLT M7x32 (W470)
• 8. CYLINDER BASIS GASKET 0.2 (W702417100010.2)
• 8. CYLINDER BASIS GASKET 0.3 (W702417100010.3)
• 8. CYLINDER BASIS GASKET 0.4 (W702417100010.4)
• 8. CYLINDER BASIS GASKET 0.5 (W702417100010.5)
• 9. CYLINDER STUD BOLT (W7004281000100)
• 10. EXHAUST SPRING BRACKET SHORT (W702428730020B)
• 11. EXHAUST FIXING HIGH SET NUT M7 (W540/RVA)
• 12. EXHAUST SPRING BRACKET LONG (W702428730020A)
• 13. EXHAUST WASHER D.8x12x1,5 (W565)
• 14. JUNIOR EXHAUST MANIFOLD (W7002463000.Junior)
• 14. SENIOR EXHAUST MANIFOLD (W7002463000.Senior)
• 15. EXHAUST GASKET (W670)

Not sure which one you need? Send us your chassis or engine and year and we will match the part.
