OTK
VLR100 OTK Engine Parts Crankshaft and Stator Ignition Assembly
$17.79
VLR100 OTK Engine Parts Crankshaft and Stator Ignition Assembly from OTK.

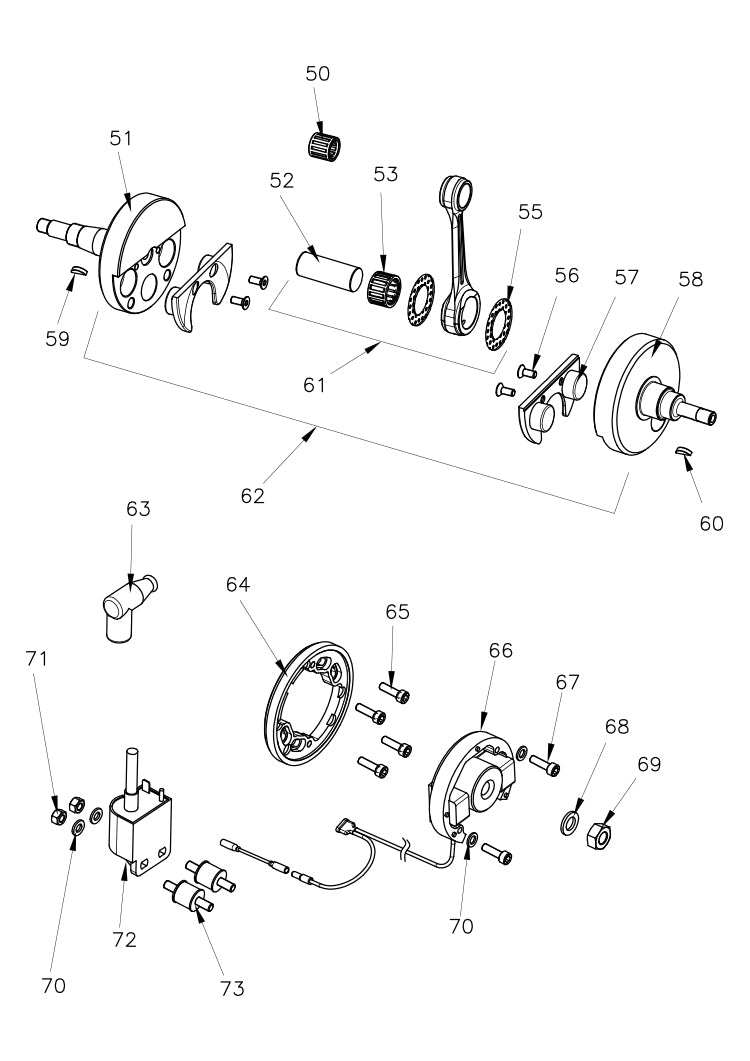

Pick the part from the option list. Each option is one part with its own part number.
- 50. PISTON CAGE 14x18x17 B2 (W290/1.B2)
- 50. PISTON CAGE 14x18x17 B4 (W290/1.B4)
- 51. DRIVE SIDE HALF CRANKSHAFT (W150/RKT)
- 52. CRANKSHAFT PIN (W7000123000600)
- 53. SILVER-PLATED CAGE IKO B2 (W10320.B2)
- 53. SILVER-PLATED CAGE IKO B4 (W10320.B4)
- 53. SILVER-PLATED CAGE IKO B6 (W10320.B6)
- 54.
- 55. SILVER-PLATED SHIM D.20,1 mm (W10310/KF)
- 56. FLATHEAD SCREW M5x12 10.9 (W522/12)
- 57. CRANKSHAFT STUFFER NYLON (W160/KF)
- 58. IGNITION SIDE HALF CRANKSHAFT (W140/RKT)
- 59. KEY IGNITION SIDE 3x3.7x10 (W121)
- 60. IGNITION KEY 2,5x3,7x10 (W122)
- 61. COMPLETE CONROD (W7000121000100)
- 62. COMPLETE CRANKSHAFT (W7000135000100)
- 63. SPARK PLUG CAP / BOOT (W420AAA)
- 64. STATOR SUPPORT (W7002243700100)
- 65. SOCKET-HEAD SCREW M5x14 (W524/14)
- 66. MINI ROK BARE IGNITION (W407/MR)
- 67. SOCKET HEAD SCREW 5x20 mm (V.TCE5X20)
- 68. IGNITION WASHER D.10,4x18x2 (W1777/MR)
- 69. HEXAGONAL CI8 pf 5587 NUT (W529/0108)
- 70.
- 71. HEXAGONAL NUT M6x1 CL10 (W531/06)
- 72.
- 73. COIL FIXING SILENT-BLOCK (W440)
Not sure which one you need? Send us your chassis or engine and year and we will match the part.
Shipped from Vacaville, or collect at the shop or the tent. Questions: (510) 825-9182.
